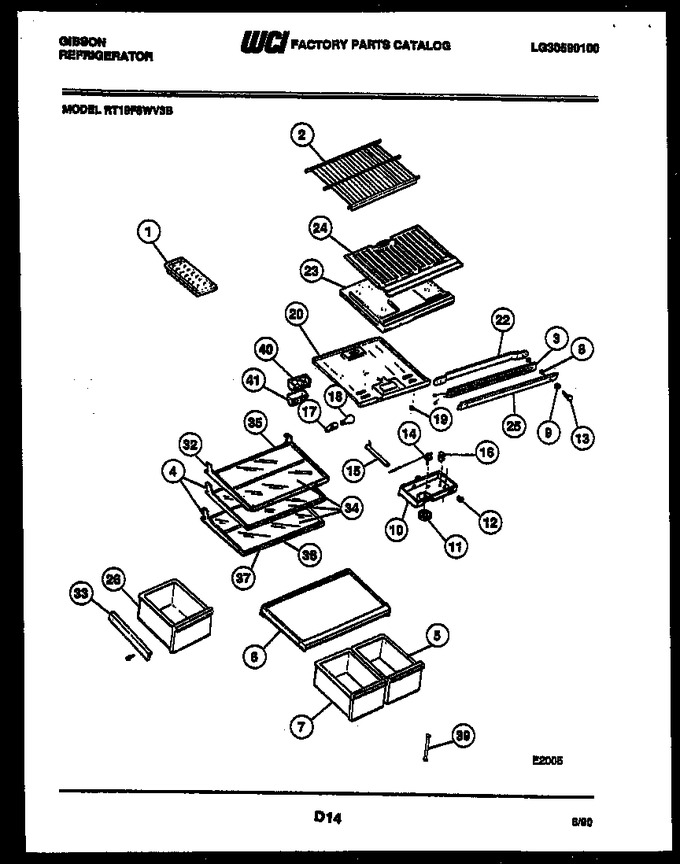

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001324 | Ice Tray (2) |
|
- | |||||
| 2 | G177059-09 | Shelf - Freezer |
|
- | |||||
| 3 | 5308002662 | Heater-mullion |
|
- | |||||
| 4 | 5303210022 | Frame-cantilever (2) |
|
- | |||||
| 5 | 5317663928 | Pan - Crisper Rh |
|
- | |||||
| 6 | 5303001493 | Cover-crisper |
|
- | |||||
| 7 | G490015-46 | Pan-crisper Lh |
|
- | |||||
| 8 | 5303200464 | Spacer-mullion |
|
- | |||||
| 9 | 5303206754 | Washer-no. 10 Steel (2) |
|
- | |||||
| 10 | 5303206574 | Control Box |
|
- | |||||
| 11 | 5303201777 | Knob-temperature |
|
- | |||||
| 12 | 5303206872 | Switch-energy Saver |
|
- | |||||
| 13 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 14 | 5303018894 | Control-temperature |
|
- | |||||
| 15 | 3018991 | Housing-cont Cap Tube |
|
- | |||||
| 16 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 17 | 218906802 | Light Socket (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 18 | 5303001179 | Light Bulb |
|
- | |||||
| 19 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 20 | 3018993 | Top - Refrigerator |
|
- | |||||
| 22 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 23 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 24 | 5303001505 | Bottom, Freezer |
|
- | |||||
| 25 | 5303200370 | Mullion, Almd |
|
- | |||||
| 25 | 5303200368 | Mullion, Wheat |
|
- | |||||
| 25 | 5303200367 | Mullion - Avocado |
|
- | |||||
| 25 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 25 | 5303200369 | Mullion - Coffee |
|
- | |||||
| 26 | G187181-01 | Meat Pan |
|
- | |||||
| 32 | 5303210990 | Frame-meat Keeper Shelf |
|
- | |||||
| 33 | 5303210016 | Hanger, Meat Pan, Lh |
|
$ 134.09 | |||||
| 34 | 5303210989 | Glass-shelf (3) |
|
- | |||||
| 35 | 5303210991 | Trim-rear Shelf Retnr (3) |
|
- | |||||
| 36 | 5303209274 | Retainer-glass (3) |
|
- | |||||
| 37 | 5303210988 | Trim-shelf (3) |
|
- | |||||
| 39 | 5303205987 | Support-crisper Cover Adj |
|
$ 48.41 | |||||
| 40 | 3204206 | Deflector - Air |
|
- | |||||
| 41 | 5303001546 | Cover, Deflector |
|
- | |||||
| 10A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 14A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 16A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 20A | 5303001380 | Screw |
|
- | |||||
| 23A | 3018900 | Wiring Harn-divider (non-illustrated) |
|
- | |||||
| 23B | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 | |||||
| 2A | 3201150 | Cap-protector (2) (non-illustrated) |
|
$ 4.57 | |||||
| 2B | 5304509705 | Grommet-rh (4) (non-illustrated) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 2C | 5304500407 | Grommet-lh (4) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 33A | 5303210017 | Hanger, Meat Pan, Rh (non Illustrated) |
|
$ 107.89 | |||||
| 33B | 08014528 | Screw (2) (non-illustrated) |
|
$ 4.31 | |||||
| 6A | 5303200329 | Gasket-crisper Cover (non-illustrated) |
|
- |
