02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

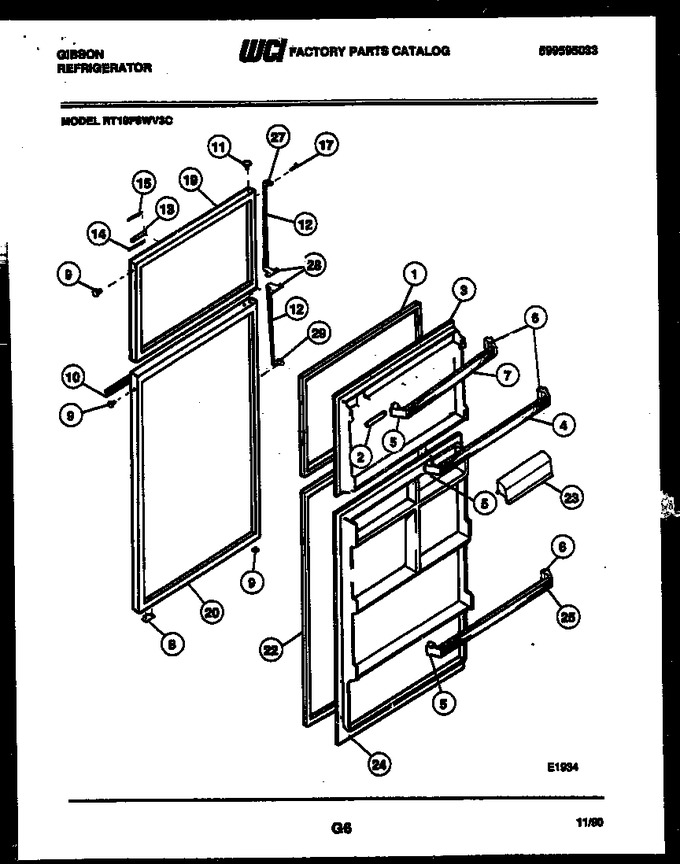

1	5303001486		Gasket-freezer		Appelez-nous	-
2	3202032		Dispenser-juice Can		Appelez-nous	-
3	3203048		Inner Panel-freezer		Appelez-nous	-
4	G161019-62		Rack-door-lower		Appelez-nous	-
5	5317828402		Support - Lh (4)		Appelez-nous	-
6	5317828702		Support - Rh (4)		Appelez-nous	-
7	G161019-61		Rack-door-upper		Appelez-nous	-
8	5308000255		Stop-door (1)				$ 42.20
9	5308000179		Plug, Handle Avoc		Appelez-nous	-
9	240494001		Plug, Handle, White   (Replaces: 5308000090)			Immediately	$ 18.20
9	5308000181		Plug, Handle, Almond		Appelez-nous	-
9	5308000178		Plug, Handle, Coffee		Appelez-nous	-
9	5308000180		Plug, Handle, Wheat		Appelez-nous	-
10	G167150-12		Trim-refr Door		Appelez-nous	-
11	5308000134		Plug, Hinge, White				$ 5.62
11	5303001657		Plug-hinge, Coffee		Appelez-nous	-
11	5308000176		Plug, Hinge, Wheat		Appelez-nous	-
11	5308000175		Plug-hinge-avocado		Appelez-nous	-
11	5303001308		Plug, Hinge, Almond		Appelez-nous	-
12	5317049526		Grip - Handle (2)		Appelez-nous	-
13	5317511702		Nameplate - Frame		Appelez-nous	-
14	3019041		Label-lower		Appelez-nous	-
15	5318837802		Label Upper		Appelez-nous	-
17	5308011745		Screw				$ 10.38
19	5317869010		Freezer Door - Coffee		Appelez-nous	-
19	5317869009		Freezer Door - Wheat		Appelez-nous	-
19	5317869011		Freezer Door - Almond		Appelez-nous	-
19	5300178690		Freezer Door - White		Appelez-nous	-
19	5317869008		Freezer Door - Avocado		Appelez-nous	-
20	5317869411		Refrigerator Door-almd		Appelez-nous	-
20	5317869408		Refrigerator Door-avoc		Appelez-nous	-
20	5300178694		Refrigerator Door - White		Appelez-nous	-
20	5317869410		Refrigerator Door - Coffee		Appelez-nous	-
20	5317869409		Refrigerator Door - Wheat		Appelez-nous	-
22	5308015544		Gasket-refrigerator		Appelez-nous	-
23	G187460-02		Dairy Door		Appelez-nous	-
24	G187452-02		Inner Panel-refr		Appelez-nous	-
25	G161019-65		Rack (2)		Appelez-nous	-
27	5303001297		Handle End Top				$ 70.22
28	5303001296		Handle End, (2)				$ 86.36
29	5303001295		Handle - End Bottom		Appelez-nous	-
*34544	5303007739		Insulation, Bulk		Appelez-nous	-
19A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
20A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
24A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
3A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
8A	5303212491		Door Stop-refr (1) (non-illustrated)		Appelez-nous	-
8B	5308011745		Screw				$ 10.38

    View Diagram in Separate Window       Print Part List
