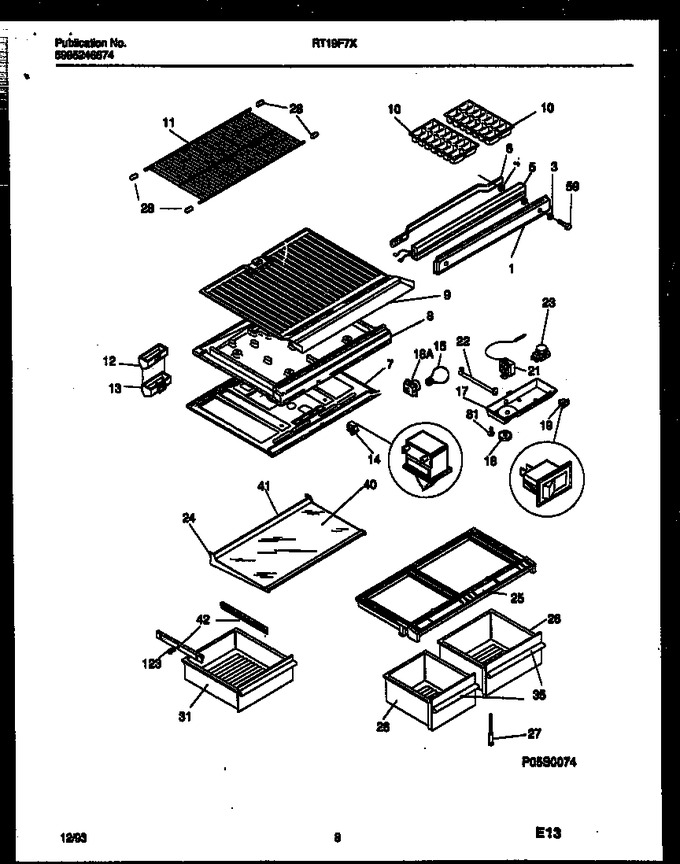

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200370 | Mullion, Almond |
|
- | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer-mullion Mtg, Steel |
|
- | |||||
| 5 | 5303210351 | Heater-mullion |
|
- | |||||
| 6 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 7 | 3018993 | Top Panel-refr |
|
- | |||||
| 8 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 9 | 5303211427 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic, (2) |
|
Immediately | $ 6.07 | ||||
| 11 | 5303211425 | Shelf-freezer |
|
- | |||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 40A15 | Light Bulb/lamp, 40w (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 17 | 5303272507 | Box-control |
|
- | |||||
| 18 | 5303206678 | Knob-temp Control |
|
$ 82.48 | |||||
| 19 | 5303206872 | Switch-energy Saver |
|
- | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303210990 | Frame-full Shlf, Cantilever |
|
- | |||||
| 25 | 5308010006 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303300681 | Pan-crisper, Rh |
|
- | |||||
| 26 | 215791905 | Pan-crisper, Lh |
|
- | |||||
| 27 | 5303206508 | Support-crisper Cvr, Adjustable |
|
- | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 29 | 5303274957 | Trim-full Shelf, Snap-on, Front |
|
- | |||||
| 31 | 5303299708 | Pan-meat |
|
- | |||||
| 35 | 5303275340 | Trim-crisper Pan, Rh & Lh |
|
- | |||||
| 40 | 5303276024 | Glass-shelf, Full Shelf, (3) |
|
- | |||||
| 41 | 5303276023 | Trim-full Shelf, Rear |
|
- | |||||
| 42 | 5303210016 | Hanger, Meat Pan, Lh |
|
$ 134.09 | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 123 | 08014528 | Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P |
|
$ 4.31 | |||||
| *61641 | 5300170910 | Clip-cantilevr Shlf |
|
$ 2.60 | |||||
| 12A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation (non-illustrated) |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17A | 08016567 | Nut-anchor, Control Box Mtg (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 25A | 5303200329 | Gasket-pan Cover, 13.25`` (non-illustrated) |
|
- | |||||
| 29A | 5303209274 | Retainer-glass (non-illustrated) |
|
- | |||||
| 41A | 5303211351 | Lock-shelf Trim, Rear (non-illustrated) |
|
- | |||||
| 42A | 5303210017 | Hanger, Meat Pan, Rh (non Illustrated) |
|
$ 107.89 | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 8A | 3019040 | Harness-wiring, Control (non-illustrated) |
|
- | |||||
| 8B | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 |
