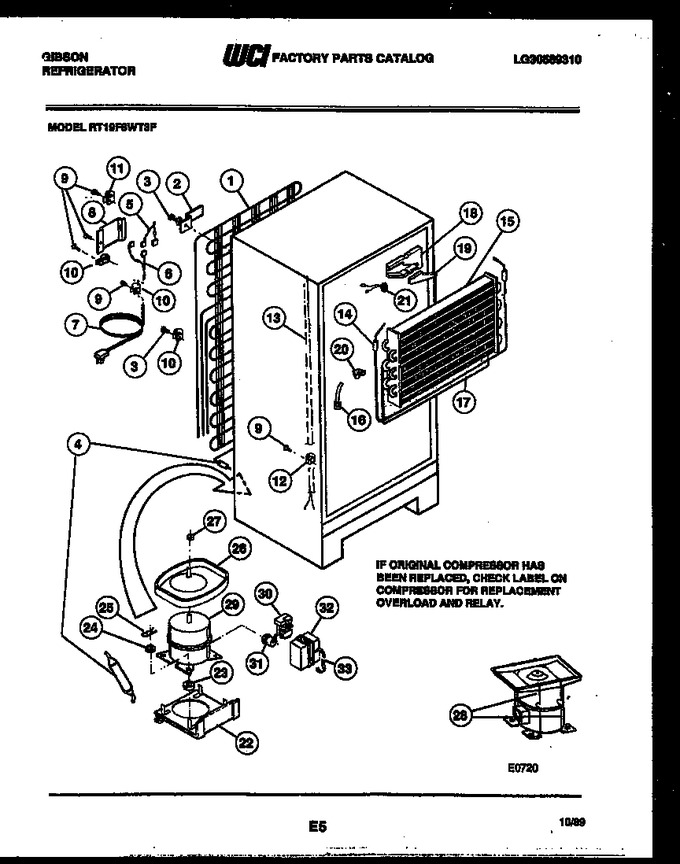

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G162739		Condenser		Appelez-nous	-
2	G164637		Bracket, Cond. Mtg. (4)		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	3007351		Drier-filter		Appelez-nous	-
5	G174818		Wiring Harness-control		Appelez-nous	-
6	G166062-01		Wiring, Harness, Compressor		Appelez-nous	-
7	G162549-01		Service Cord		Appelez-nous	-
8	G183584		Cover, Wiring		Appelez-nous	-
9	G187009		Screw-8-15 X 1/2		Appelez-nous	-
10	G27669		Clamp-cable (4)		Appelez-nous	-
11	G168979		Clamp-harness		Appelez-nous	-
12	G88088		Clamp-exchanger		Appelez-nous	-
13	G177531		Heat Exchanger		Appelez-nous	-
14	G178425-01		Heater, Defrost		Appelez-nous	-
15	G164572		Evaporator Coil		Appelez-nous	-
16	G165546		Strap-evap/heater (2)		Appelez-nous	-
17	G169024-04		Insulator-evap		Appelez-nous	-
18	G185299		Insulation Block Rs		Appelez-nous	-
19	G185276		Insulation Plug Rs		Appelez-nous	-
20	G188375		Insulation Block Ls		Appelez-nous	-
21	G162690-01		Thermostat, Defrost		Appelez-nous	-
22	G184599		Plate-compr Mtg		Appelez-nous	-
23	G177617		Grommet (4)		Appelez-nous	-
24	G164634		Washer (4)		Appelez-nous	-
25	G163204		Clip (4)		Appelez-nous	-
26	G184715		Drain Pan		Appelez-nous	-
27	G164958		Lock Nut-pan Mtg		Appelez-nous	-
28	3916001		Pan Retainer Kit-service		Appelez-nous	-
29	3916411		Compressor W/ Electricals-service		Appelez-nous	-
30	216594300		Relay   (Replaces: 3204486)				$ 28.92
31	3204487		Overload		Appelez-nous	-
32	3006411		Cover-terminal		Appelez-nous	-
33	3006412		Strap-term Cover		Appelez-nous	-
*18473	G189383		Hot Tube Repair Kit-service		Appelez-nous	-
26A	G169873		Sound Tape-pan (non-illustrated)		Appelez-nous	-
3A	G164820		Washer-no. 10 Ext Tooth (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
