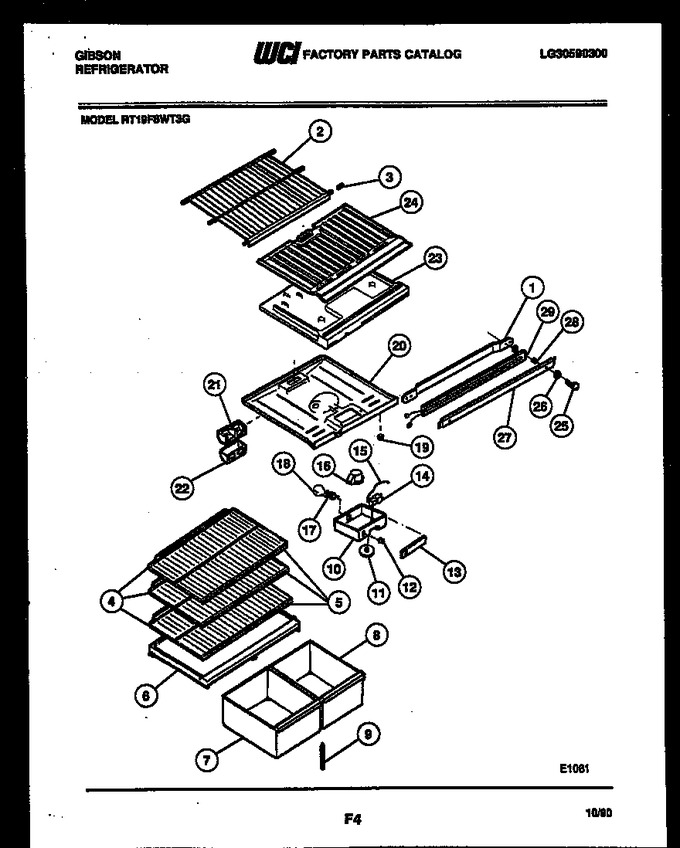

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308010008 | Strap, Mullion Mounting |
|
- | |||||
| 2 | G184572-04 | Shelf - Freezer |
|
- | |||||
| 3 | 3201150 | End Cap-shelf |
|
$ 4.57 | |||||
| 4 | G181153-06 | Shelf-refrigerator (3) |
|
- | |||||
| 5 | 5317241002 | Trim - Shelf (3) |
|
- | |||||
| 6 | 5303001493 | Cover - Pan |
|
- | |||||
| 7 | G490015-39 | Pan - Small - Lh |
|
- | |||||
| 8 | G176639-23 | Pan - Large - Rh |
|
- | |||||
| 9 | 5303205987 | Support - Pan Cover Adjustment |
|
$ 48.41 | |||||
| 10 | 5317672203 | Control Box |
|
- | |||||
| 11 | 5308010011 | Knob-temperature Control |
|
- | |||||
| 12 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 13 | G188379-01 | Label-control Box |
|
- | |||||
| 14 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 15 | 5308037932 | Sleeve-plastic Tube |
|
- | |||||
| 16 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 17 | 5308000129 | Light Socket |
|
$ 62.16 | |||||
| 18 | 5303001179 | Light Bulb |
|
- | |||||
| 19 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 20 | 5303016367 | Top-refrigerator |
|
- | |||||
| 21 | 5308000071 | Air Deflector |
|
- | |||||
| 22 | 5303001546 | Cover, Deflector |
|
- | |||||
| 23 | 5303001504 | Divider, Styrofoam |
|
- | |||||
| 24 | 5303211427 | Bottom - Freezer |
|
- | |||||
| 25 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 26 | 5303206754 | Washer-no. 10 Steel (2) |
|
- | |||||
| 27 | 5303200367 | Mullion - Avocado |
|
- | |||||
| 27 | 5303200368 | Mullion, Wheat |
|
- | |||||
| 27 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 27 | 5303200370 | Mullion, Almond |
|
- | |||||
| 27 | 5303200369 | Mullion - Coffee |
|
- | |||||
| 28 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 29 | 5303210351 | Heater-mullion |
|
- | |||||
| 10A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 14A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 16A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 20A | 5303001380 | Screw |
|
- | |||||
| 23A | 3001383 | Wiring Harness, Divider (non-illustrated) |
|
- |
