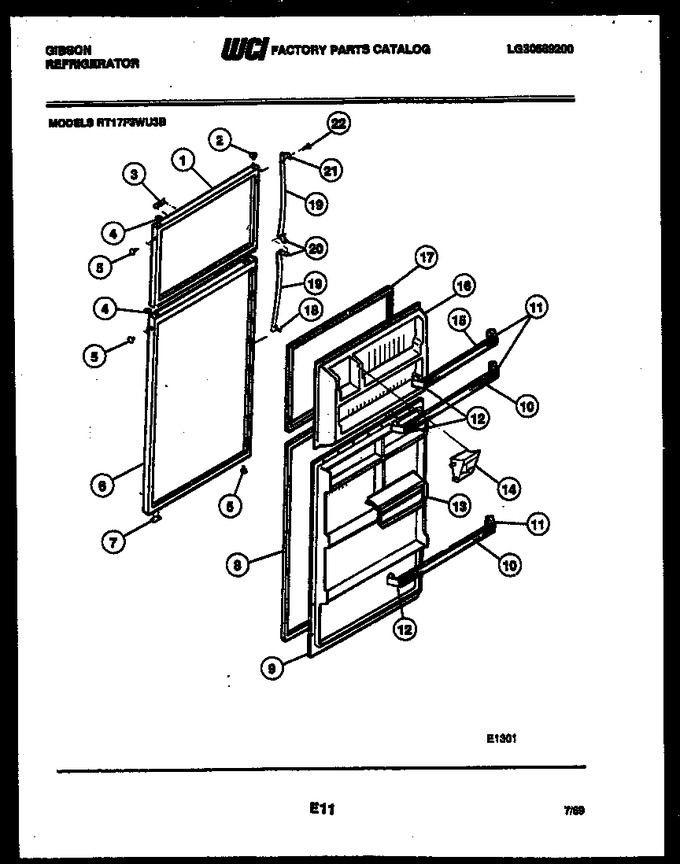

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-12		Gasket-freezer		Appelez-nous	-
2	G186932-13		Gasket-refrigerator		Appelez-nous	-
3	G187452-02		Inner Panel-refrigerator		Appelez-nous	-
4	3016720		Rack-refrigerator Door (2)		Appelez-nous	-
5	G178287-02		Support-rs (4)		Appelez-nous	-
6	G187284-02		Support-ls (4)		Appelez-nous	-
7	G187460-01		Dairy Door		Appelez-nous	-
8	3016720		Rack-freezer-lower		Appelez-nous	-
9	G161019-59		Rack-freezer Upper		Appelez-nous	-
11	3203048		Inner Panel-freezer		Appelez-nous	-
12	G169332-09		Button Plug, Wheat		Appelez-nous	-
12	G169332-10		Button-plug, Coffee		Appelez-nous	-
12	G169332-08		Button Plug-avocado		Appelez-nous	-
12	G169332-01		Button Plug, White		Appelez-nous	-
12	G169332-11		Button Plug, Almond		Appelez-nous	-
13	G178690-09		Freezer Panel-wheat		Appelez-nous	-
13	G178690-08		Freezer Panel-avocado		Appelez-nous	-
13	G178690-10		Freezer Panel-coffee		Appelez-nous	-
13	G178690-11		Freezer Panel-almond		Appelez-nous	-
13	G178690		Freezer Panel-white		Appelez-nous	-
14	G175117-02		Nameplate-frame		Appelez-nous	-
15	G188378-02		Label-nameplate-upper		Appelez-nous	-
16	3019041		Label-nameplate Lower		Appelez-nous	-
17	G162977-09		Button Plug-wheat		Appelez-nous	-
17	G162977-11		Button Plug-almond		Appelez-nous	-
17	G162977-01		Button Plug-white		Appelez-nous	-
17	G162977-08		Button Plug-avocado		Appelez-nous	-
17	G162977-10		Button Plug-coffee		Appelez-nous	-
18	G178694-10		Refrigerator Panel-coffee		Appelez-nous	-
18	G178694-09		Refrigerator Panel-wheat		Appelez-nous	-
18	G178694-11		Refrigerator Panel-almond		Appelez-nous	-
18	G178694		Refrigerator Panel-white		Appelez-nous	-
18	G178694-08		Refrigerator Panel-avocado		Appelez-nous	-
19	G155072		Door Stop (2)		Appelez-nous	-
20	G179801		Handle End-bottom		Appelez-nous	-
21	G170495-24		Grip-handle (2)		Appelez-nous	-
22	G187329-01		Handle End (2)		Appelez-nous	-
23	G179800		Handle End-top		Appelez-nous	-
24	G185566		Screw		Appelez-nous	-
*17867	G89643		Insulation (bulk)		Appelez-nous	-
10A	3202032		Dispenser-juice Can (non-illustrated)		Appelez-nous	-
11A	G162585		Screw		Appelez-nous	-
13A	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
14A	G153407-60		Tape, Nameplate (non-illustrated)		Appelez-nous	-
18A	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
19A	G185566		Screw		Appelez-nous	-
3A	G162585		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
