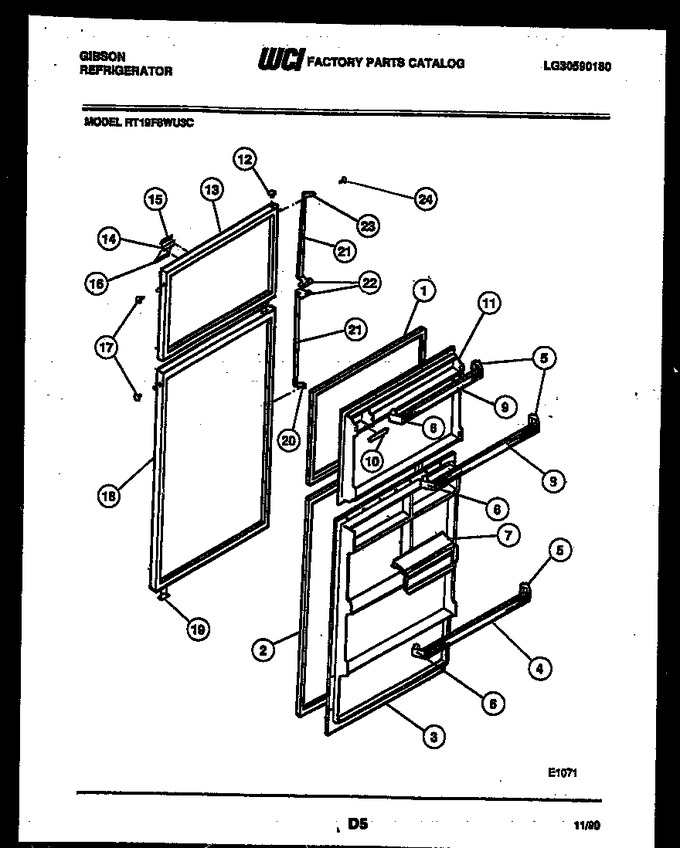

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker Parts


07 - Ice Maker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001486		Gasket-freezer		Appelez-nous	-
2	5308015544		Gasket-refrigerator		Appelez-nous	-
3	G187452-02		Inner Panel-refr		Appelez-nous	-
4	5303016720		Rack-refr Door (2)		Appelez-nous	-
5	5317828702		Support-rs (4)		Appelez-nous	-
6	5317828402		Support-ls (4)		Appelez-nous	-
7	G187460-01		Dairy Door		Appelez-nous	-
8	5303016720		Rack-freezer-lower		Appelez-nous	-
9	5303016720		Rack - Freezer - Upper		Appelez-nous	-
10	G187492-01		Rack-juice Can		Appelez-nous	-
11	3203048		Inner Panel-freezer		Appelez-nous	-
12	5308000175		Plug-avocado		Appelez-nous	-
12	5303001657		Plug-coffee		Appelez-nous	-
12	5308000176		Plug-wheat		Appelez-nous	-
12	5303001308		Plug-almond		Appelez-nous	-
12	5308000134		Plug-white				$ 5.62
13	5300178690		Freezer Panel - White		Appelez-nous	-
13	5317869008		Freezer Panel-avoc		Appelez-nous	-
13	5317869009		Freezer Panel - Wheat		Appelez-nous	-
13	5317869011		Freezer Panel - Almond		Appelez-nous	-
13	5317869010		Freezer Panel - Coffee		Appelez-nous	-
14	5317511702		Nameplate - Frame		Appelez-nous	-
15	5318837802		Label - Nameplate - Upper		Appelez-nous	-
16	3019041		Label-nameplate Lower		Appelez-nous	-
17	240494001		Plug - White   (Replaces: 5308000090)			Immediately	$ 18.20
17	5308000181		Plug - Almond		Appelez-nous	-
17	5308000178		Plug - Coffee		Appelez-nous	-
17	5308000180		Plug - Wheat		Appelez-nous	-
17	5308000179		Plug - Avocado		Appelez-nous	-
18	5317869411		Refrigerator Panel - Almond		Appelez-nous	-
18	5317869409		Refrigerator Panel - Wheat		Appelez-nous	-
18	5300178694		Refrigerator Panel - White		Appelez-nous	-
18	5317869410		Refrigerator Panel - Coffee		Appelez-nous	-
18	5317869408		Refrigerator Panel - Avocado		Appelez-nous	-
19	5308000255		Door Stop (2)				$ 42.20
20	5303001295		Handle - End Bottom		Appelez-nous	-
21	5317049526		Grip - Handle (2)		Appelez-nous	-
22	5303001296		Handle End, (2)				$ 86.36
23	5303001297		Handle End Top				$ 70.22
24	5308011745		Screw				$ 10.38
*23218	5303007739		Insulation, Bulk		Appelez-nous	-
10A	3202032		Dispenser-juice Can (non-illustrated)		Appelez-nous	-
11A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
13A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
14A	5315340760		Tape Nameplate (non-illustrated)		Appelez-nous	-
18A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
19A	5308011745		Screw				$ 10.38
3A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
