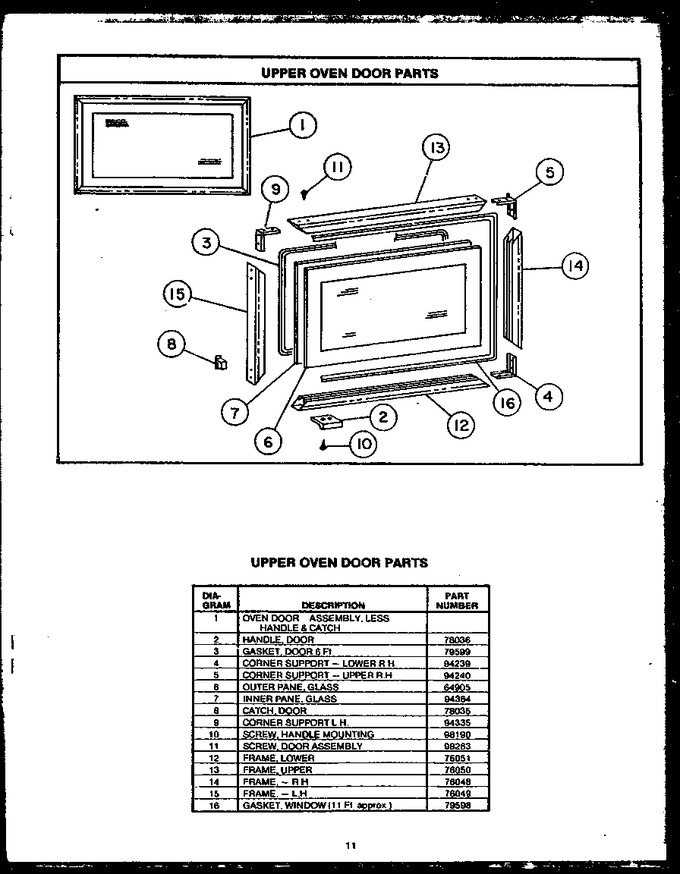

SELECT A DIAGRAM

01 - 30`` Upper Oven With Elec Ign-gas Compnt


02 - Backguard Parts


03 - Broiler Door Parts


04 - Electrical Components 30`` Lower Units


05 - Gas Compnt 30`` Lw Units With Elec Ign


06 - Oven Door With Full Black Glass


07 - Page 1


08 - Upper Oven Door Parts


09 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Oven Door Assembly Less Handle & Catch		Appelez-nous	-
2	78036		Handle, Door		Appelez-nous	-
3	79599		Gasket, Door 6 Ft.		Appelez-nous	-
4	0094239		Corner Support Lower, R.h.		Appelez-nous	-
5	Y0094240		Corner Support Upper, R.h.		Appelez-nous	-
6	64905		Outer Pane, Glass		Appelez-nous	-
7	Y0094364		Inner Glass Pane-upper Door		Appelez-nous	-
8	78035		Catch, Door		Appelez-nous	-
9	0094335		Corner Support, L.h.		Appelez-nous	-
10	0098190		Screw, Oven Door		Appelez-nous	-
11	Y0098263		Mtg Screw Upper Door		Appelez-nous	-
12	76051		Frame, Lower				$ 705.47
13	76050		Frame, Upper		Appelez-nous	-
14	76048		Frame - R.h.		Appelez-nous	-
15	76049		Frame - L.h.		Appelez-nous	-
16	79598		Gasket, Window		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
