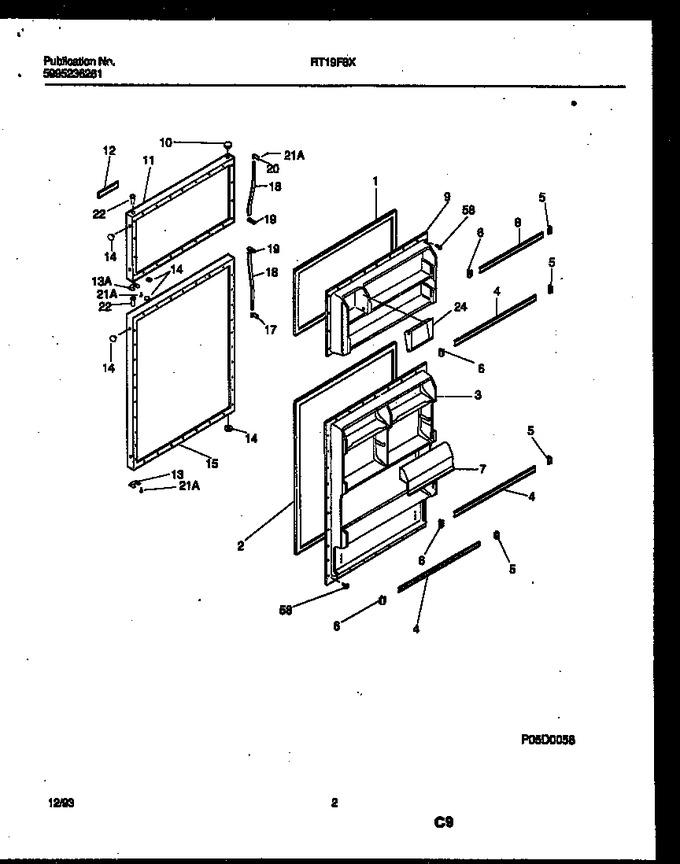

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001486 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5308015544 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303275026 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303275027 | Rack-door, (3) |
|
- | |||||
| 5 | 5303274990 | Support-door Rack, Rh, (4) |
|
- | |||||
| 6 | 5303274989 | Support-door Rack, Lh, (4) |
|
- | |||||
| 7 | 5303275015 | Door-dairy |
|
- | |||||
| 8 | 5303272797 | Rack-door |
|
- | |||||
| 9 | 5303275054 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5300178690 | Panel-frzr Door, White |
|
- | |||||
| 12 | 5303272505 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5300178694 | Panel-refr Door, White |
|
- | |||||
| 17 | 5303001297 | Handle End |
|
$ 70.22 | |||||
| 18 | 5303272495 | Handle-door, (2) |
|
- | |||||
| 19 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 20 | 5303001295 | Handle End |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 24 | 5303275052 | Dispenser-juice Can |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *60539 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 13A | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
