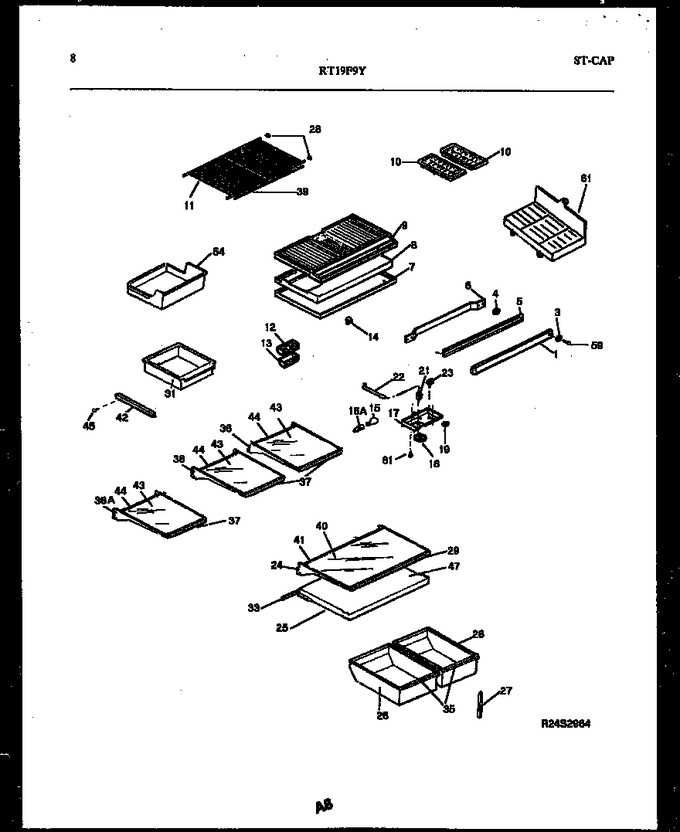

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200370		Mullion, Almond		Appelez-nous	-
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer-mullion Mtg, Steel		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	3018993		Top Panel-refr		Appelez-nous	-
8	3018994		Divider - Styrofoam		Appelez-nous	-
9	5303211427		Bottom Panel-frzr		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
11	5303209597		Shelf-freezer		Appelez-nous	-
12	5308014667		Deflector, Air		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
17	5303272507		Box-control		Appelez-nous	-
18	5303209251		Knob-temp Control		Appelez-nous	-
19	5303207249		Switch-energy Saver		Appelez-nous	-
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
24	5303276776		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303279634		Cover-crisper Pan		Appelez-nous	-
26	5303274981		Pan-crisper, Rh		Appelez-nous	-
26	5303275274		Pan-crisper, Lh		Appelez-nous	-
27	5303206505		Support-crisper Cvr, Adjustable		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	5303276021		Trim-full Shelf, Snap-on, Front		Appelez-nous	-
31	5303279511		Pan-meat		Appelez-nous	-
33	5303200329		Gasket-crisper Cvr, 13.25``		Appelez-nous	-
35	5303274987		Trim-crisper Pan, Lh		Appelez-nous	-
35	5303274986		Trim-crisper Pan, Rh		Appelez-nous	-
36	5303279431		Frame-half Shelf, Cantilever, (2)		Appelez-nous	-
37	5303279765		Trim-half Shelf, Snap-on, (3)		Appelez-nous	-
39	5303279767		Trim-frzr Shelf, Snap-on		Appelez-nous	-
40	5303279783		Shelf-glass, Full Shelf		Appelez-nous	-
41	5303276023		Trim-full Shelf, Rear		Appelez-nous	-
42	5303279817		Hanger-meat Pan, Rh		Appelez-nous	-
43	5303279784		Shelf-glass, Half Shelf, (3)		Appelez-nous	-
44	5303279768		Trim-half Shelf, Rear, (3)		Appelez-nous	-
45	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
47	5303279700		Insert-crisper Cvr, Glass		Appelez-nous	-
54	5303275404		Container-ice		Appelez-nous	-
59	5308012258		Screw				$ 2.25
61	5318609501		Compartment-ice Tray		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
54497	5300170910		Clip-cantilevr Shlf				$ 2.60
54498	5303211351		Lock, Rear Trim		Appelez-nous	-
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation (non-illustrated)		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
25A	5303279635		Control-humidity (non-illustrated)		Appelez-nous	-
25B	5303279636		Trim-crisper Cover (non-illustrated)		Appelez-nous	-
29A	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
36A	5303286403		Frame-meat Kpr Shlf, Cantilever		Appelez-nous	-
37A	5303209263		Retainer-glass (non-illustrated)		Appelez-nous	-
42A	5303279816		Hanger-meat Pan, Lh (non-illustrated)		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
8A	3205266		Protector-edge (non-illustrated)				$ 80.09
