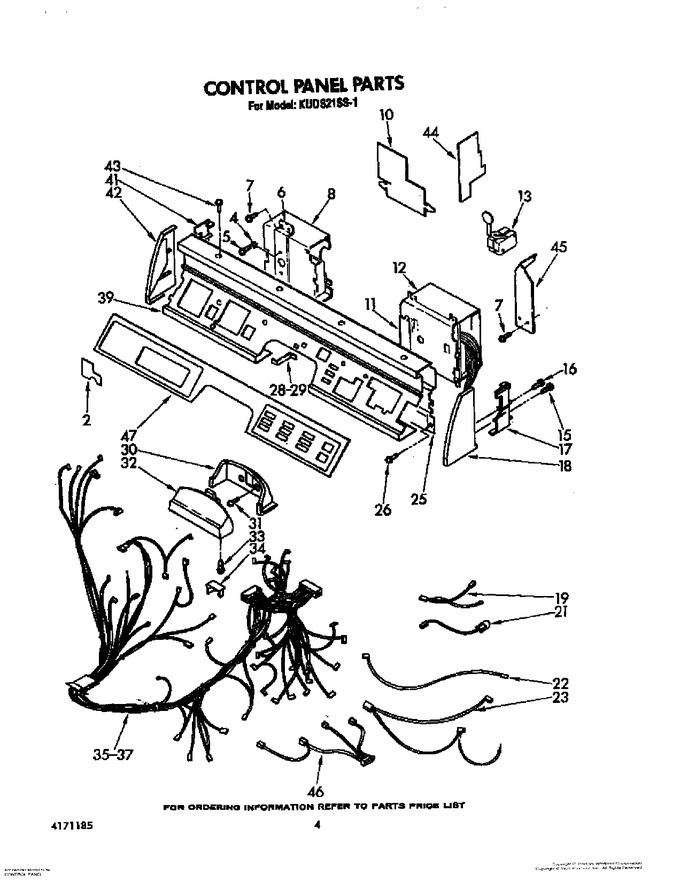

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4171183 | Insulator, Integral Bracket |
|
- | |||||
| 4 | 4159494 | Washer |
|
- | |||||
| 5 | 4159229 | Screw, 10-32 X 3/8 |
|
- | |||||
| 6 | 4163159 | Bracket, Rotary Switch |
|
- | |||||
| 7 | 4159373 | Screw, 8-18 X 1/2 |
|
- | |||||
| 8 | 4163515 | Rotary Switch Assy. (incls. Items 4-6) |
|
- | |||||
| 10 | 4162861 | Insulator, Harness |
|
- | |||||
| 11 | 4171182 | Insulator, Controller |
|
- | |||||
| 12 | 4163510 | Controller Assy. |
|
- | |||||
| 13 | 4163573 | Switch, Interlock (incls. Item 45) |
|
- | |||||
| 15 | 4163263 | Screw & Washer Assy |
|
- | |||||
| 16 | 4159467 | Screw, 8-32 X 7/8 |
|
- | |||||
| 17 | 4163288 | Spacer, End Cap (r.h.) |
|
- | |||||
| 18 | 4163241 | End Cap (r.h.) |
|
- | |||||
| 19 | 4163272 | Wiring Harness (grounding) |
|
- | |||||
| 21 | 4163471 | Lead (fill Control To Fill Valve) |
|
- | |||||
| 22 | 4163576 | Lead Assy. (interlock Switch To Program Switch) |
|
- | |||||
| 23 | 4163270 | Wiring Harness (lower Common) |
|
- | |||||
| 25 | 4162043 | Clip, Grounding (front Panel) |
|
- | |||||
| 26 | 4159373 | Screw, 8-18 X 1/2 |
|
- | |||||
| 28 | 4163245 | Bracket, Panel Reinforcement |
|
- | |||||
| 29 | 4159446 | Screw, 6-20 X 3/8 |
|
- | |||||
| 30 | 4163254 | Trim, Handle |
|
- | |||||
| 31 | WP912618 | Screw, 8-32 X 1/2 (Replaces: 4159335) |
|
$ 6.98 | |||||
| 32 | 4163243 | Handle, Latch |
|
- | |||||
| 33 | 4159225 | Screw, 10-32 X 5/8 |
|
- | |||||
| 34 | 4163372 | Clip, Harness Guide |
|
- | |||||
| 35 | 4163517 | Wiring Harness (main) |
|
- | |||||
| 37 | 4159349 | Screw, 8-18 X 3/8 |
|
- | |||||
| 39 | 4163622 | Control Panel |
|
- | |||||
| 39 | 4163568 | Pushnut (7) |
|
- | |||||
| 41 | 4163289 | Spacer, End Cap (l.h.) |
|
- | |||||
| 42 | 4163242 | End Cap (l.h.) |
|
- | |||||
| 43 | 4159408 | Screw, 6-20 X 3/8 |
|
- | |||||
| 44 | 4162145 | Insulator, Switch |
|
- | |||||
| 45 | 4163161 | Bracket, Door Switch Assy. |
|
- | |||||
| 46 | 4171184 | Harness (thermostat) |
|
- | |||||
| 47 | 4163538 | Pushnut (7) |
|
- | |||||
| 47 | 4163526 | Display Board |
|
- | |||||
| LIT4171187 | Tag, Energy Fact |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | ||||||
| LIT4171185 | List, Repair Parts |
|
- | ||||||
| LIT4177716 | Guide, Use & Care |
|
- | ||||||
| LIT4171152 | Sheet, Tech (service Imformation) |
|
- | ||||||
| LIT4171136 | Instructions, Installation |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| 261891 | Golden Harvest (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| 285365 | Toast |
|
- | ||||||
| 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | |||||
| 261890 | Golden Harvest |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 4171179 | Insulation Kit (kit Includes Tub, Kickboard, And Lower Panel Insulation) |
|
- | ||||||
| 675506 | Tine Tip Repair Kit (blue-enough For Two Complete Dishracks) |
|
- | ||||||
| 675476 | Vinyl Touch Up (blue) |
|
- | ||||||
| 799640 | Kit, Epoxy Patch (white) |
|
- | ||||||
| 285368 | Platinum (uncut) |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 |
