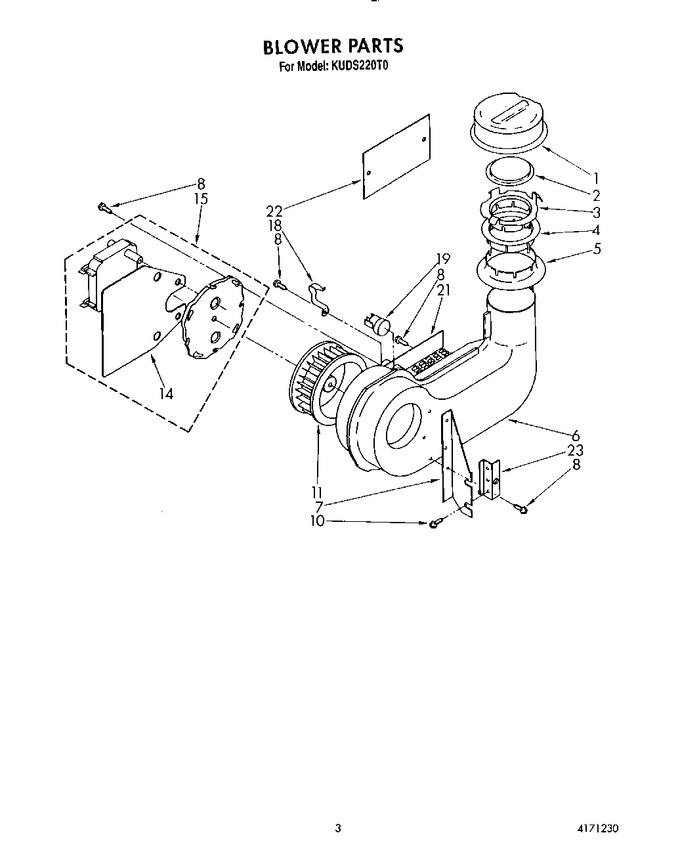

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4162102 | Cover, Air Inlet (incls. Items 2 Thru 5) |
|
- | |||||
| 2 | 4161590 | Float, Check Valve |
|
- | |||||
| 3 | 4161597 | Support, Air Inlet Cover |
|
- | |||||
| 4 | 4161650 | Deflector, Air (upper) |
|
- | |||||
| 5 | 4160652 | Deflector, Air (lower) |
|
- | |||||
| 6 | 4162701 | Dryer Housing & Bracket Assembly (includes Items 7 & 19) |
|
- | |||||
| 7 | 4162703 | Bracket, Housing Support |
|
- | |||||
| 8 | 4159442 | Screw, 8-18 X 5/16 (8) |
|
- | |||||
| 10 | 4159178 | Screw, 10-16 X 5/8 (2) |
|
- | |||||
| 11 | 4162741 | Wheel, Blower |
|
- | |||||
| 14 | 4162443 | Cover, Dryer Motor |
|
- | |||||
| 15 | 4162742 | Blower Motor Assembly |
|
- | |||||
| 18 | 4162990 | Clip, Thermoprotector |
|
- | |||||
| 19 | 4171164 | (alt.) |
|
- | |||||
| 19 | 4160464 | Thermostat |
|
- | |||||
| 19 | 4171162 | (alt.) |
|
- | |||||
| 19 | 4171163 | (alt.) |
|
- | |||||
| 21 | 4162034 | Heater, Open |
|
- | |||||
| 21 | 4171161 | (alt.) |
|
- | |||||
| 21 | 4171160 | (alt.) |
|
- | |||||
| 21 | 4171159 | (alt.) |
|
- | |||||
| 22 | 4163186 | Access Cover |
|
- | |||||
| 23 | 4171153 | Bracket, Blower Mounting |
|
- |
