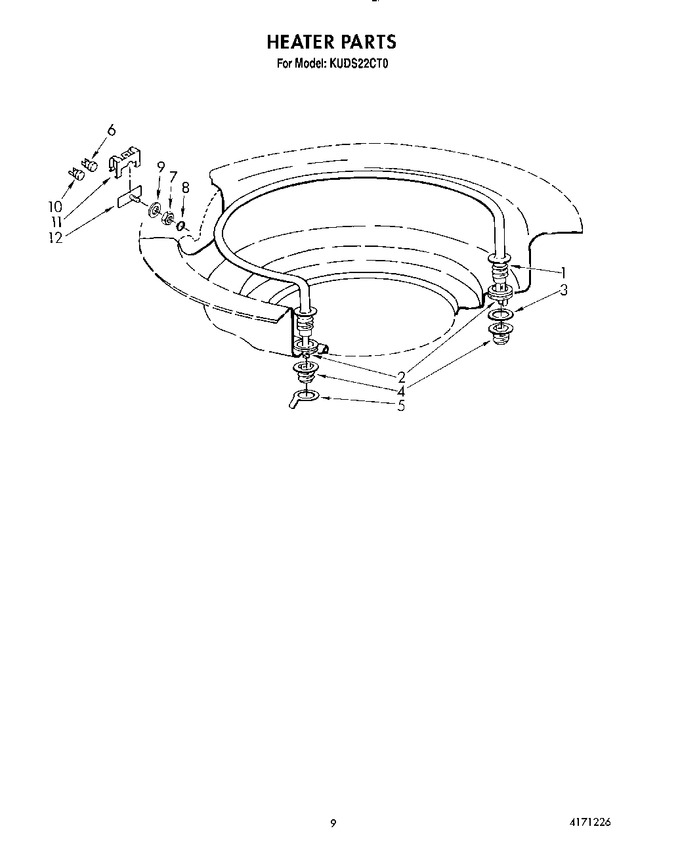

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4163524 | (alt.) |
|
- | |||||
| 1 | 4171154 | (alt.) |
|
- | |||||
| 1 | 4171155 | Element, Heater |
|
- | |||||
| 2 | 4162520 | Grommet, Heater Element |
|
- | |||||
| 3 | 4159600 | Washer, Heater Element |
|
- | |||||
| 4 | 4162518 | Nut, Heater Element |
|
- | |||||
| 5 | 4163306 | Terminal, Ground |
|
- | |||||
| 6 | 4171247 | Thermostat |
|
- | |||||
| 7 | 4161640 | Nut, Heat Sensing |
|
- | |||||
| 8 | 4159822 | ``o`` Ring |
|
- | |||||
| 9 | 4161644 | Gasket |
|
- | |||||
| 10 | 4171249 | Protector, Thermostat |
|
- | |||||
| 11 | 4171248 | Bracket, Thermostat |
|
- | |||||
| 12 | 4171246 | Bracket, Mounting |
|
- |
