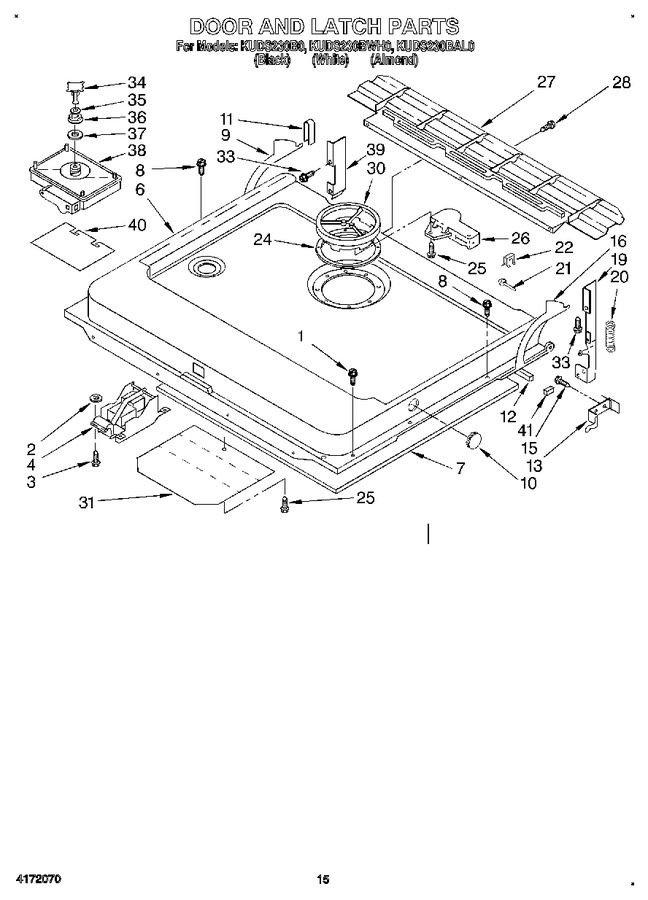

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9742113		Screw And Washer		Appelez-nous	-
2	4159513		Washer		Appelez-nous	-
3	3369139		Screw, 10-16 X 3/8		Appelez-nous	-
4	9741590		Latch Mechanism Assembly		Appelez-nous	-
6	4171443		Inner Door Assembly		Appelez-nous	-
7	4163577		Insulation, Inner Door		Appelez-nous	-
8	9740922		Screw & Washer Assembly		Appelez-nous	-
9	4161592		Bracket, L.h. Door Stop		Appelez-nous	-
10	9740847		Plug Button		Appelez-nous	-
11	4160355		Bearing, Door Stop Insert				$ 7.71
12	4162949		Vapor Barrier, Inner Door (includes Item No. 41)		Appelez-nous	-
13	4161958		Bracket, Spring Mounting (r.h.)		Appelez-nous	-
13	4161957		Bracket, Spring Mounting (l.h.)		Appelez-nous	-
15	WP3390631		Screw, 10-32 X 3/8   (Replaces: 4159184)				$ 7.04
16	4161594		Bracket, R.h. Door Stop		Appelez-nous	-
19	4161587		Bracket, R.h. Hinge				$ 77.90
20	WP4162629		Spring, Door Counterbalance (2)   (Replaces: 4162629)				$ 31.08
21	4161563		Pin, Hinge		Appelez-nous	-
22	4161585		Clip, Hinge Pin Retaining		Appelez-nous	-
24	4171447		Seal, Detergent Dispenser				$ 8.48
25	9741365		Screw, 8-18 X 1/2		Appelez-nous	-
26	WP9741678		Bimetal Assembly   (Replaces: 9741678)				$ 82.98
27	4161295		Baffle, Lower				$ 38.85
28	W11233072		Screw, 8-18 X 1/2   (Replaces: 9741050)			Immediately	$ 12.62
30	9740171		Detergent Dispenser & Gasket Assembly (115 V., 60 Hz.) (includes Item 24)				$ 120.52
31	9742181		Barrier, Detergent Cup		Appelez-nous	-
33	9741419		Screw & Washer Assembly		Appelez-nous	-
34	4162490		Fill Hole Plug Assembly (includes Item 35)		Appelez-nous	-
35	4162496		Washer, Fill Hole Plug				$ 36.50
36	4171300		Nut, Rinse Agent Dispenser				$ 34.65
37	4161545		Gasket, Rinse Agent Dispenser		Appelez-nous	-
38	9741234		Rinse Agent Dispensing Valve		Appelez-nous	-
39	4161589		Bracket, L.h. Hinge		Appelez-nous	-
40	9741866		Shield, Rinse Dispenser		Appelez-nous	-
41	4162950		Vapor Barrier, Corner (2)		Appelez-nous	-
	LIT9742114		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	675506		Tine Tip Repair Kit (blue-enough For Two Complete Dishracks)		Appelez-nous	-
	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 40.85
	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
	285368		Platinum (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Golden Harvest (uncut)		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	285365		Toast		Appelez-nous	-
	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
	261890		Golden Harvest		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	9741949		Stainless Steel		Appelez-nous	-
	4171635		Almond (l.h.)		Appelez-nous	-
	4171634		White (l.h.)		Appelez-nous	-
	4162841		Wood Top Kit		Appelez-nous	-
	4171633		Almond (r.h.)		Appelez-nous	-
	4171632		White (r.h.)		Appelez-nous	-
	9741247		Heavy Duty Door Springs				$ 20.31
	4171476		Adjustable Kickboard Kit		Appelez-nous	-
	9741358		Drain Hose Assembly		Appelez-nous	-
	LIT9742248		Tech Sheet		Appelez-nous	-
	LIT9742004		Guide, Use & Care		Appelez-nous	-
	LIT9742211		Energy Guide		Appelez-nous	-
	4171179		Insulation Kit (kit Includes Tub, Kickboard, And Lower Panel Insulation)		Appelez-nous	-
