SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker Parts
07 - Ice Maker Installation Parts
SELECT A DIAGRAM
New Model Search:

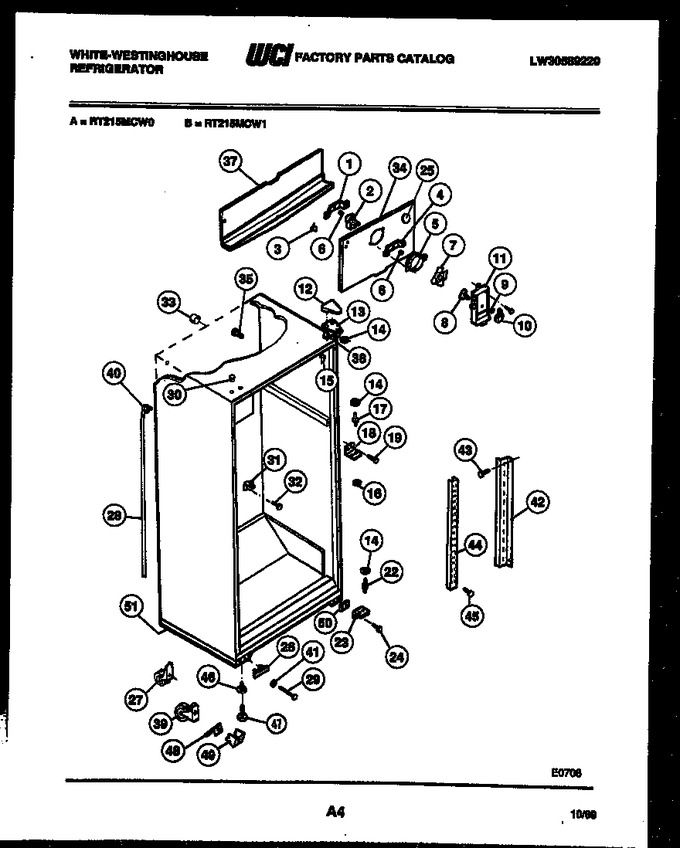

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205119 | Bracket-rear |
|
- | |||||
| 2 | G158289 | Motor-fan |
|
- | |||||
| 3 | G164571 | Connector Bracket |
|
- | |||||
| 4 | G185302 | Bracket-front |
|
- | |||||
| 5 | G167217 | Orifice Ring |
|
- | |||||
| 6 | G157666 | Bushing (2) |
|
- | |||||
| 7 | G174705 | Fan Blade |
|
- | |||||
| 8 | 3001331 | Damper |
|
- | |||||
| 9 | G162662 | Push Nut-damper |
|
- | |||||
| 10 | 3206381 | Knob - Damper Control |
|
- | |||||
| 11 | 5303206544 | Cover-fan |
|
- | |||||
| 12 | G183558-11 | Hinge Cover-almond |
|
- | |||||
| 13 | G183714 | Hinge-top |
|
- | |||||
| 14 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 15 | 3202340 | Corner Trim-almond |
|
- | |||||
| 16 | G164355 | Washer, Hinge |
|
- | |||||
| 17 | G142220 | Pin |
|
- | |||||
| 18 | G163207 | Bracket-center Hinge |
|
- | |||||
| 19 | 08012258 | Screw |
|
- | |||||
| 22 | G166505 | Pin-bottom Hinge |
|
- | |||||
| 23 | 3202834 | Bracket-bottom Hinge |
|
- | |||||
| 24 | 3001320 | Screw-mounting (2) |
|
- | |||||
| 25 | 3203044 | Plug-short Test Hole |
|
- | |||||
| 26 | G166912 | Cover-hinge |
|
- | |||||
| 27 | G183407 | Roller, Rear (2) |
|
- | |||||
| 28 | 3001458 | Drain Tube |
|
- | |||||
| 29 | G177024 | Bolt-roller Adj (2) |
|
- | |||||
| 30 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 31 | G162179 | Spout Drain Tube |
|
- | |||||
| 32 | 3001361 | Push Pin-drain Spout |
|
- | |||||
| 33 | G85642 | Tube, Rubber (2) |
|
- | |||||
| 34 | 08013665 | Cover-evaporator Coil |
|
- | |||||
| 35 | G163669 | Support, Cover (2) |
|
- | |||||
| 37 | 3001470 | Drain Trough |
|
- | |||||
| 38 | G183861 | Shim Top Hinge |
|
- | |||||
| 39 | G177021 | Roller Assy-front (2) |
|
- | |||||
| 40 | G176853 | Ring, Seal |
|
- | |||||
| 41 | G182799 | Washer Nylon (2) |
|
- | |||||
| 42 | 08000302 | Channel-shelf Mtg-side (2) |
|
- | |||||
| 43 | 08010253 | Screw-side Chnl Mtg (6) |
|
- | |||||
| 44 | 3015409 | Channel-shelf Mtg-center |
|
- | |||||
| 45 | 08016568 | Screw-ctr Chnl Mtg (3) |
|
- | |||||
| 46 | G183073 | Nut, Anchor (2) |
|
- | |||||
| 47 | G185713 | Screw, Leveling (2) |
|
- | |||||
| 48 | G178494 | Spring-roller Adj (2) |
|
- | |||||
| 49 | G177302 | Support-cabinet Base (2) |
|
- | |||||
| 50 | G163203 | Shim-lower Hinge Brkt |
|
- | |||||
| 51 | G490004-02 | Base, Cabinet |
|
- | |||||
| *24101 | 08012296 | Tapping Plate (4) |
|
- | |||||
| *24101 | G174733 | Ferrule, Inner |
|
- | |||||
| *24101 | G187599 | Plug-refr Liner (2) |
|
- | |||||
| *24102 | G174734 | Ferrule Outer |
|
- | |||||
| 11A | G187363 | Screw |
|
- | |||||
| 11B | 5303206545 | Label-fan Cover (non-illustrated) |
|
- | |||||
| 13A | 3001479 | Screw-hinge Mtg (2) (non-illustrated) |
|
- | |||||
| 27A | G187009 | Screw-roller Mtg (2) (non-illustrated) |
|
- | |||||
| 27B | G177025 | Screw-roller Mtg (2) (non-illustrated) |
|
- | |||||
| 28A | G187009 | Screw-tube Mtg (non-illustrated) |
|
- | |||||
| 34A | G187363 | Screw |
|
- | |||||
| 34B | G167542 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 3A | 3001001 | Screw-brkt Mounting (non-illustrated) |
|
- | |||||
| 5A | 3001001 | Screw-fan Assy (2) (non-illustrated) |
|
- |
