Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 675704 Inlet Base Assy. (also Order Item 30) See Note A. Appelez-nous -
2 675806 Impeller   (Replaces: 675705) In-Stock Immediately $ 127.87

3 WP9741232 Screw, 8-18 (16)   (Replaces: 9741232) In-Stock Immediately $ 4.56

6 95080 ``o`` Ring Appelez-nous -
9 9740676 Box, Separator Collector (also Order Item 30) See Note A. Appelez-nous -
10 9741258 Screw, 8-18 (4) Appelez-nous -
12 WP3371152 Screw & Seal, 10-32 X 3/4   (Replaces: 3371152) Special Order $ 7.61

13 WP302711 Seal, Pump Outlet   (Replaces: 9740677) Special Order $ 34.17

14 9740683 Outlet, Pump (includes Item 13) Appelez-nous -
15 675238 Check Valve (includes Item 6)   (Replaces: 3369482) Special Order $ 78.04

16 717000 Gasket, Pump Special Order $ 78.98

17 9740665 Pump & Motor Assembly (includes Item 16) Appelez-nous -
18 302707 Bushing, Grind Appelez-nous -
19 675806 Chopper Kit (also Order Item 30) See Note A.   (Replaces: 302718) In-Stock Immediately $ 127.87

20 302705 Sleeve, Drain Impeller Appelez-nous -
21 W11693756 Screw, 8-18   (Replaces: 9741321) In-Stock Immediately $ 12.65

22 302704 Seal, Drain Cover Special Order $ 7.40

23 302723 Cover, Drain (includes Item 33) (also Order Item 30) See Note A. Appelez-nous -
24 675806 Impeller, Drain Kit (also Order Item 30) See Note A.   (Replaces: 303539) In-Stock Immediately $ 127.87

25 9740671 Base, Pump (includes Items 24 & 33) (also Order Item 30) See Note A. Appelez-nous -
26 3367197 Support, Pump Mounting (4) Special Order $ 5.70

27 W10909679 Slinger (see Note A.)   (Replaces: 3368270) Special Order $ 19.49

28 3369330 Motor (includes Items 24 & 27) (also Order Item 30) (for Electrical Connector Only, See Wiring Harne Appelez-nous -
29 3369331 Screw (4) Appelez-nous -
30 675703 Pump Seal Kit (includes Items 12, 13, 22 & 36) Special Order $ 55.81

31 303918 Tool, Pump Centering Special Order $ 38.41

33 WP9740674 Gasket, Drain Cover   (Replaces: 9740674) Special Order $ 7.05

35 4161605 Connector, Overhead Appelez-nous -
36 WP9740678 Seal   (Replaces: 9740678) Special Order $ 10.19

39 9741366 Tube, Drain Special Order $ 48.25

40 WP285655 Clamp, Hose   (Replaces: 370445) In-Stock Immediately $ 7.55

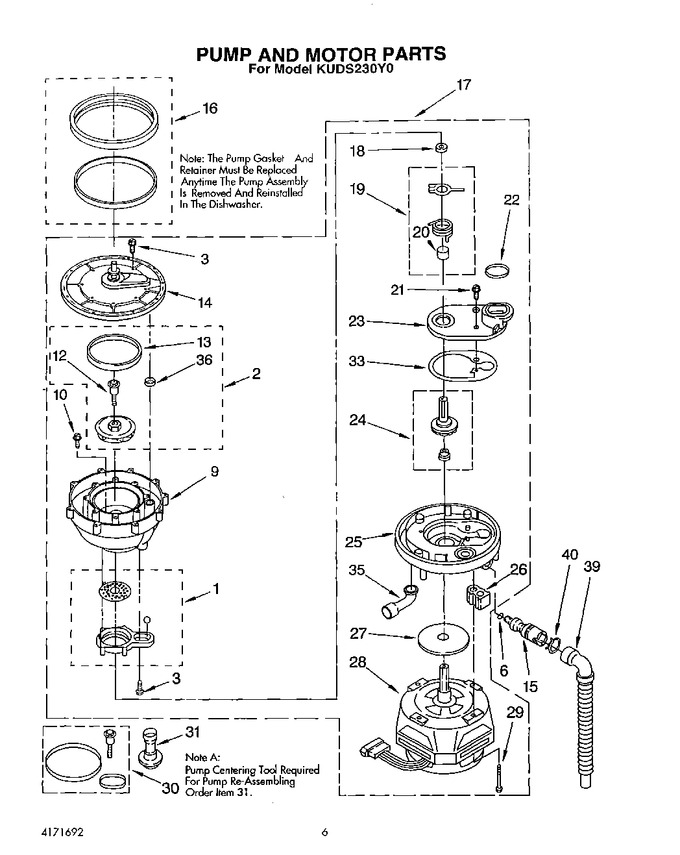

    View Diagram in Separate Window     Print Icon   Print Part List
