02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker Parts


07 - Ice Maker Installation Parts

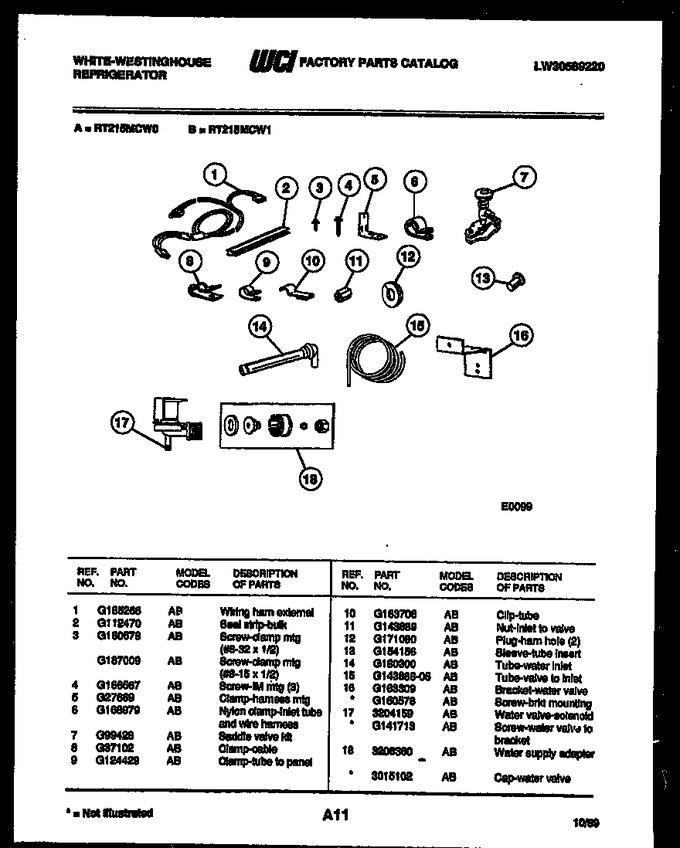

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G185266		Wiring Harn External		Appelez-nous	-
2	G112470		Seal Strip-bulk		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	G166567		Screw-im Mtg (3)		Appelez-nous	-
5	G27669		Clamp-harness Mtg		Appelez-nous	-
6	G168979		Nylon Clamp-inlet Tube And Wire Harness		Appelez-nous	-
7	G99428		Saddle Valve Kit		Appelez-nous	-
8	G37102		Clamp, Cable		Appelez-nous	-
9	G124429		Clamp		Appelez-nous	-
10	G163706		Clip-tube		Appelez-nous	-
11	G143689		Nut-inlet To Valve		Appelez-nous	-
12	G171080		Plug-harn Hole (2)		Appelez-nous	-
13	G154156		Sleeve, Tube Insert		Appelez-nous	-
14	G180300		Tube, Water Inlet		Appelez-nous	-
15	G143688-05		Tube-valve To Inlet		Appelez-nous	-
16	G163309		Bracket-water Valve		Appelez-nous	-
17	3204159		Water Valve-solenoid		Appelez-nous	-
18	3206360		Water Supply Adapter				$ 94.66
*24130	3015102		Cap-water Valve		Appelez-nous	-
16A	G160578		Screw		Appelez-nous	-
17A	G141713		Screw-water Valve To Bracket (non-illustrated)		Appelez-nous	-
3A	G187009		Screw-clamp Mtg (8-15 X 1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
