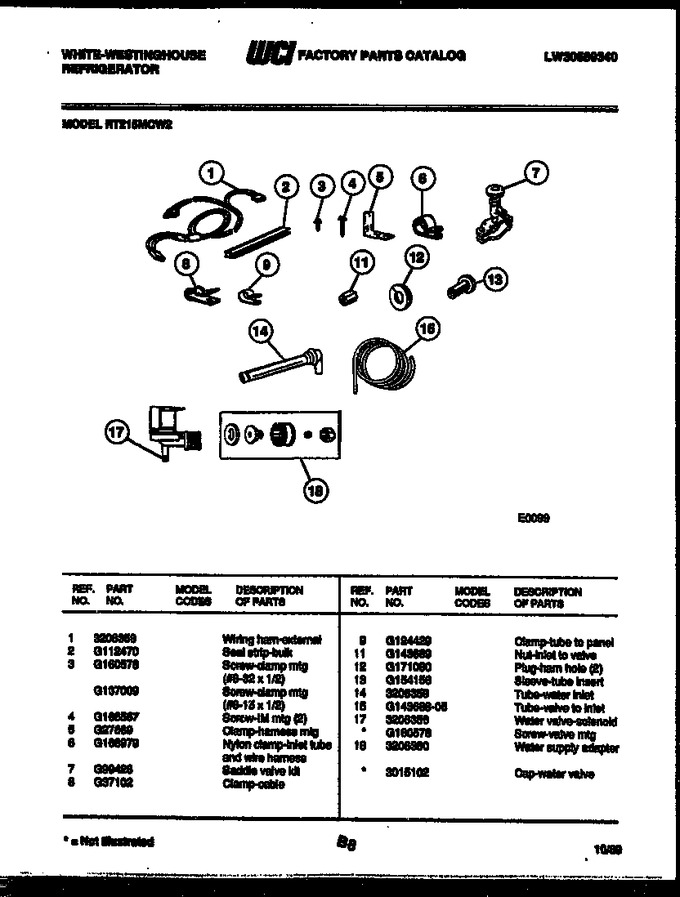

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker Parts
07 - Ice Maker Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206358 | Wiring Harn-external |
|
- | |||||
| 2 | G112470 | Seal Strip-bulk |
|
- | |||||
| 3 | G160578 | Screw |
|
- | |||||
| 4 | G166567 | Screw-im Mtg (2) |
|
- | |||||
| 5 | G27669 | Clamp-harness Mtg |
|
- | |||||
| 6 | G168979 | Nylon Clamp-inlet Tube And Wire Harness |
|
- | |||||
| 7 | G99428 | Saddle Valve Kit |
|
- | |||||
| 8 | G37102 | Clamp, Cable |
|
- | |||||
| 9 | G124429 | Clamp |
|
- | |||||
| 11 | G143689 | Nut-inlet To Valve |
|
- | |||||
| 12 | G171080 | Plug-harn Hole (2) |
|
- | |||||
| 13 | G154156 | Sleeve, Tube Insert |
|
- | |||||
| 14 | 3206359 | Tube-water Inlet |
|
- | |||||
| 15 | G143688-05 | Tube-valve To Inlet |
|
- | |||||
| 17 | 3206356 | Water Valve-solenoid |
|
- | |||||
| 18 | 3206360 | Water Supply Adapter |
|
$ 94.66 | |||||
| *25005 | 3015102 | Cap-water Valve |
|
- | |||||
| 17A | G160578 | Screw |
|
- | |||||
| 3A | G187009 | Screw-clamp Mtg (8-15 X 1/2) |
|
- |
