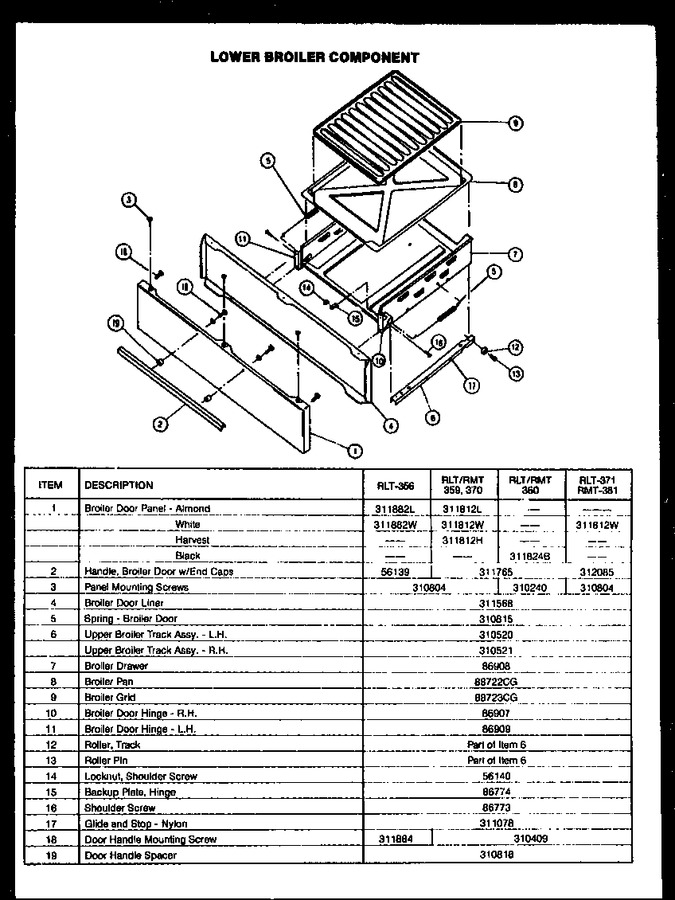

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311812W		Panel-broiler Drawer 30`` (wht)		Appelez-nous	-
2	Y0312085		Broiler Door Handle		Appelez-nous	-
3	Y0310804		Screw No.10 X 1/2``		Appelez-nous	-
4	Y0311568		Liner, 30``, Broiler Drawer		Appelez-nous	-
5	Y0310815		Broiler Spring (j)		Appelez-nous	-
6	Y0310520		Track, Upper Lt (gas)		Appelez-nous	-
7	Y0086908		Sub 86908cg Drawer, Broiler		Appelez-nous	-
8	4396923		Broiler Pan   (Replaces: 88722CG)			Immediately	$ 52.04
9	88723CG		Grid, Broiler		Appelez-nous	-
10	0086907		Hinge, Broiler Door Rh (j)		Appelez-nous	-
11	Y0086909		Hinge, Broiler Door Lh (j)		Appelez-nous	-
12	Y00000000		See Note Roller, Track		Appelez-nous	-
13	Y00000000		See Note Roller Pin		Appelez-nous	-
14	0056140		Hex Nut W/washer {j}		Appelez-nous	-
15	Y0086774		Plate, Broiler Hinge {j}		Appelez-nous	-
16	Y0086773		Screw, Shoulder (j)		Appelez-nous	-
17	Y0311078		Glide, Drawer (wht)		Appelez-nous	-
18	Y0310409		Screw Cad Plate No.6 X 3/8``		Appelez-nous	-
19	Y0310818		Handle Spacer, Plastic (j)		Appelez-nous	-
NI	Y0310521		Track, Upper Rt (gas)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
