01 - Backguard Assy


02 - Lower Broiler Component


03 - Lower Broiler Component


04 - Oven Components


05 - Oven Door-black Glass


06 - Page 3

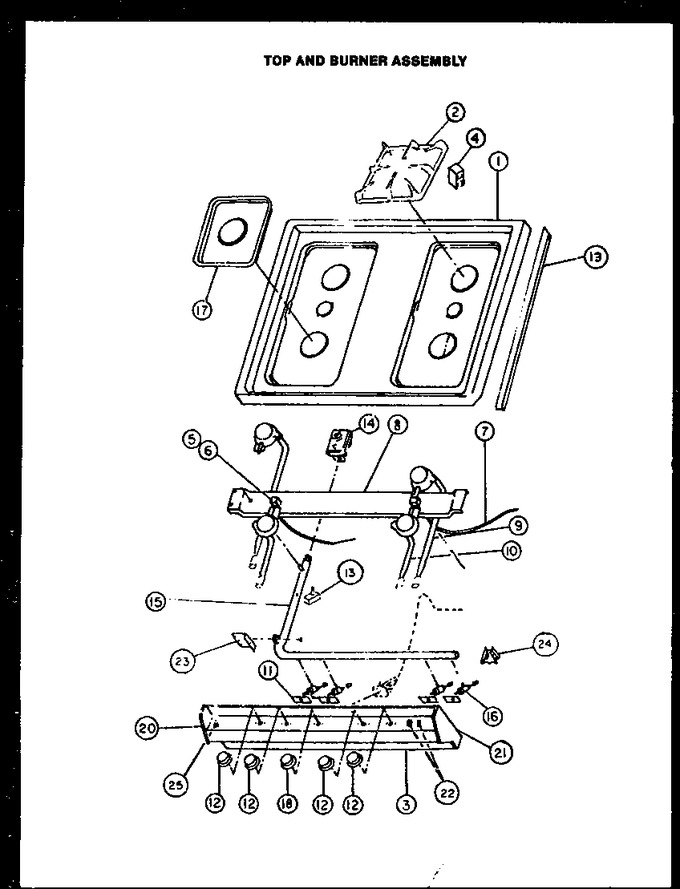

07 - Top And Burner Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310082H		Cooktop, Harvest Gold		Appelez-nous	-
1	310082W		Cooktop, White		Appelez-nous	-
1	310082L		Cooktop, Almond		Appelez-nous	-
2	60529		Top Burner Grate		Appelez-nous	-
3	Y0311851		Panel, Manifold		Appelez-nous	-
4	Y0311627		Spark Module		Appelez-nous	-
5	Y00000000		See Note Bracket, Ignitor		Appelez-nous	-
6	Y0311843		Ignitor, Griddle		Appelez-nous	-
7	Y0311842		Igniter, Spark Top 35``		Appelez-nous	-
8	Y0086719		Support, Top Burner, 30`` {j}		Appelez-nous	-
9	Y0086715		Burner - Top Rear (cal)		Appelez-nous	-
10	Y0086716		Burner - Top Front (cal)		Appelez-nous	-
11	WP4157180		Switch, Spark Valve   (Replaces: Y0088874)				$ 102.56
12	0311837		Knob		Appelez-nous	-
13	Y0088570		Valve, Manual Shut Off		Appelez-nous	-
14	Y63684		Pressure Regulator		Appelez-nous	-
15	0311832		Pipe, Manifold		Appelez-nous	-
16	Y0311836		Valve, Top Burner, 180		Appelez-nous	-
17	WPY0060872		Burner Bowl   (Replaces: 60872)				$ 25.26
18	Y0311830		Knob, Thermostat		Appelez-nous	-
19	0311853		Trim, Main Top		Appelez-nous	-
20	Y0311833		End Cap, L.h.		Appelez-nous	-
21	Y0311834		End Cap, R.h.		Appelez-nous	-
22	Y0310167		Switch, Rocker		Appelez-nous	-
23	Y0311811		Bracket, Manifold Support		Appelez-nous	-
24	0311810		Bracket, Manifold Support		Appelez-nous	-
25	Y0087020		Sub 63997, Switch, Rocker		Appelez-nous	-
NI	56018		Liner,door & Carton				$ 199.99
