SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Gas Controls
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

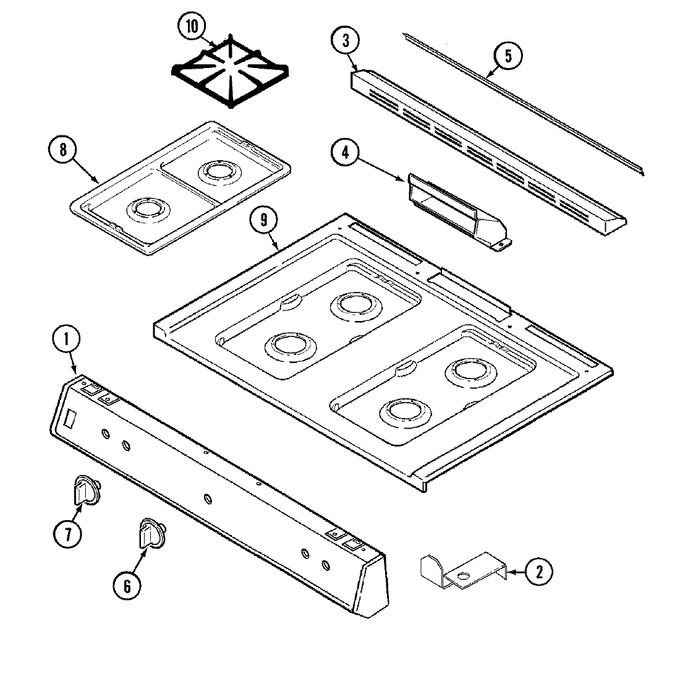

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 7712P159-60 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 2 | 3801F318-51 | Bracket, Top | 10 |
|
- | ||||
| 2 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 4825D001-59 | Cover, Vent Trim | 10 |
|
- | ||||
| 4 | 3601F221-45 | Baffle, Vent Cover | 10 |
|
$ 28.30 | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 5 | 7201P061-60 | Gasket | 10 |
|
$ 4.83 | ||||
| 6 | 7731P085-60 | Knob, Thermostat (blk) | 10 |
|
- | ||||
| 7 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P062-60) | 10 |
|
$ 25.06 | ||||
| 8 | 5401A452-60 | Drip Bowl Kit (accessory) | 10 |
|
- | ||||
| 9 | 74001558 | Top, Main (wht) | 10 |
|
- | ||||
| 10 | 2003W026-00 | Grate (blk) | 10 |
|
- | ||||
| 11 | 74002355 | Manual, Use & Care | 10 |
|
- | ||||
| 12 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
