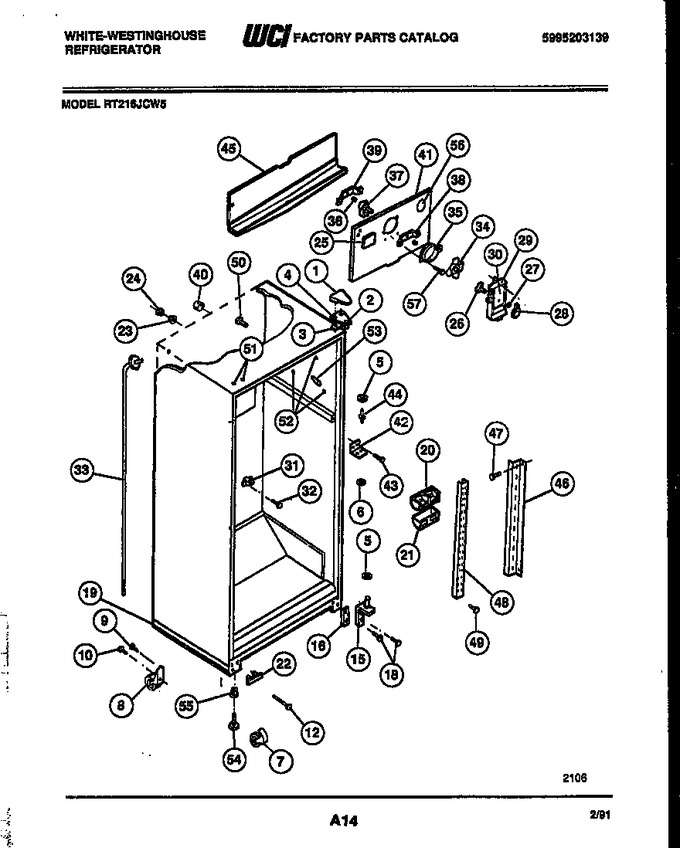

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012820 | Cover - Hinge-white |
|
- | |||||
| 2 | 5308012843 | Bracket-hinge Upper |
|
$ 71.47 | |||||
| 3 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 4 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 5 | 5308000007 | Washer - Nylon 1/4 X 5/8 Od - (2) |
|
- | |||||
| 6 | 5308000186 | Washer-nylon (1) |
|
Immediately | $ 6.02 | ||||
| 7 | 5303212490 | Roller Assembly, Front (2) |
|
- | |||||
| 8 | 5308009773 | Roller Assembly, Rear (2) |
|
- | |||||
| 9 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 10 | 5308009762 | Bolt-1/4-28 X 1/2 (2) |
|
- | |||||
| 12 | 5303212598 | Screw-1/4-28 X 2-3/8`` |
|
- | |||||
| 15 | 5303212489 | Bracket-hinge Lower |
|
- | |||||
| 16 | 5303212488 | Shim-lower Hinge |
|
$ 5.25 | |||||
| 18 | 5303001320 | Screw-1/4-20 X 5/8 (6) |
|
- | |||||
| 19 | 5303212487 | Cabinet Base |
|
- | |||||
| 20 | 5308000071 | Air Deflector |
|
- | |||||
| 21 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 21 | 5303206754 | Washer-steel |
|
- | |||||
| 22 | 5303200464 | Spacer |
|
- | |||||
| 23 | 5303001286 | Ferrule-inner |
|
- | |||||
| 24 | 5303001287 | Ferrule-outer |
|
- | |||||
| 25 | 5308013636 | Plug-button Decorative |
|
- | |||||
| 26 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 27 | 5303001028 | Nut, Push |
|
- | |||||
| 28 | 5316266315 | Knob-damper Control |
|
- | |||||
| 29 | 5317979302 | Cover-fan |
|
- | |||||
| 30 | 5300180298 | Label-fan Cover |
|
- | |||||
| 31 | 5308000056 | Spout Drain |
|
$ 11.66 | |||||
| 32 | 5303001361 | Pin-push |
|
- | |||||
| 33 | 5303210377 | Drain Tube & Seal |
|
$ 109.31 | |||||
| 34 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 35 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 36 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 37 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 38 | 5303001226 | Bracket-motor Mtg (front) |
|
- | |||||
| 39 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 40 | 5303001198 | Tube-rubber |
|
- | |||||
| 41 | 5308013665 | Cover, Coil |
|
- | |||||
| 42 | 5303001369 | Bracket- Center Hinge |
|
- | |||||
| 43 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 44 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 45 | 5303001470 | Drain Trough |
|
- | |||||
| 46 | 5308000302 | Channel-shelf Rh-lh |
|
- | |||||
| 47 | 5308010253 | Screw-8-15(a) X 7/8 (6) |
|
- | |||||
| 48 | 5303015409 | Channel Center |
|
- | |||||
| 49 | 5308016568 | Screw 8a X 1-1/2 (3) |
|
- | |||||
| 50 | 5308000097 | Support-coil Cover |
|
- | |||||
| 51 | 5303001388 | Button Plug-white |
|
$ 2.60 | |||||
| 52 | 5304509705 | Grommet (4) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 53 | 5303202336 | Trim-corner (white) |
|
- | |||||
| 56 | 5303208309 | Plug, Short Test Hole |
|
$ 45.50 | |||||
| 57 | 08002748 | Screw |
|
- | |||||
| 15A | 5303212597 | Tapping Plate / Gusset, Rh |
|
- | |||||
| 15B | 5303212596 | Tapping Plate / Gusset, Lh |
|
- | |||||
| 29A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 2A | 5308012296 | Tapping-plate (2) |
|
$ 47.44 | |||||
| 33A | 5303207353 | Seal-ring (non-illustrated) |
|
$ 6.81 | |||||
| 39A | 5308000107 | Bracket-connector (non-illustrated) |
|
$ 33.23 | |||||
| 39B | 5303210353 | Screw-8-32ca X 1/2`` (non-illustrated) |
|
- | |||||
| 41A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 41B | 5303209814 | Nut-no. 8 (a) U-type (non-illustrated) |
|
- | |||||
| 52A | 5304500407 | Grommet (4) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 56A | 5308016571 | Button Plug-1/m Hole (3) (non-illustrated) |
|
$ 4.79 |
