New Model Search:

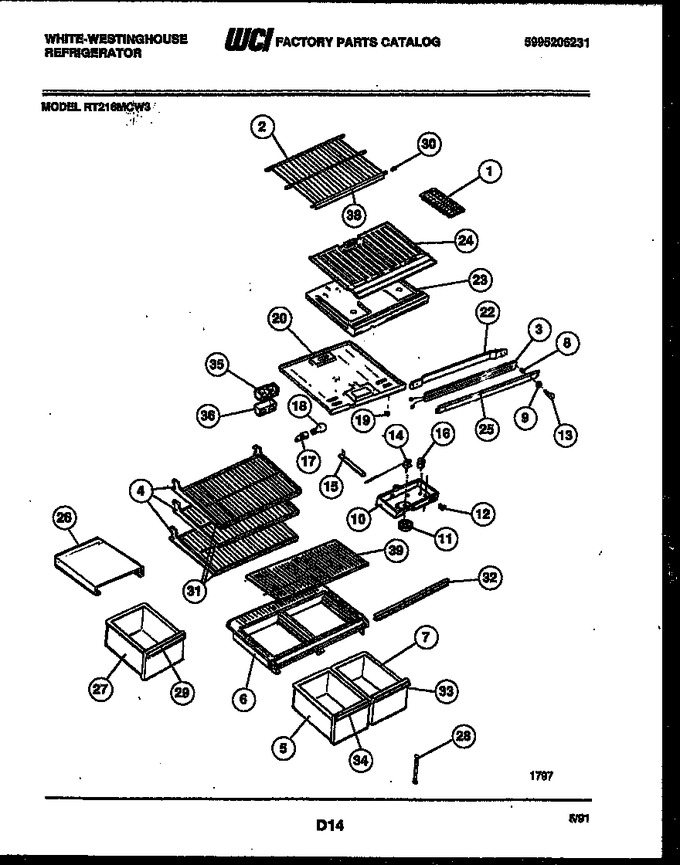

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001324 | Ice Tray (2) |
|
- | |||||
| 2 | 5303206769 | Shelf-freezer |
|
- | |||||
| 3 | 5303210351 | Heater-mullion |
|
- | |||||
| 4 | 5303209232 | Shelf-refr (3) |
|
- | |||||
| 5 | 3206311 | Crisper Pan-lh |
|
- | |||||
| 6 | 5303206538 | Cover-crisper |
|
- | |||||
| 7 | 5303206534 | Pan - Crisper - Rh |
|
- | |||||
| 8 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 9 | 5303206754 | Washer-no. 10 Steel (2) |
|
- | |||||
| 10 | 3206130 | Control Box |
|
- | |||||
| 11 | 5303209251 | Knob-temperature Control |
|
- | |||||
| 12 | 3206129 | Switch-energy Saver |
|
- | |||||
| 13 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 14 | 5303018894 | Control-temperature |
|
- | |||||
| 15 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 16 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 17 | 218906802 | Light Socket (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 18 | 5303001179 | Light Bulb |
|
- | |||||
| 19 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 20 | 3019038 | Top, Refrigerator |
|
- | |||||
| 22 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 23 | 5303019039 | Divider, Styrofoam |
|
- | |||||
| 24 | 5303210641 | Bottom, Freezer |
|
- | |||||
| 25 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 26 | 5303206773 | Cover-meat Pan |
|
- | |||||
| 27 | 5303206542 | Pan - Meat |
|
- | |||||
| 28 | 5303205987 | Support-crisper Cover |
|
$ 48.41 | |||||
| 29 | 3201414 | Trim-meat Pan |
|
- | |||||
| 30 | 3201150 | Cap Protector (2) |
|
$ 4.57 | |||||
| 31 | 5303206537 | Trim-shelf (3) |
|
- | |||||
| 32 | 3205547 | Trim-crisper Cover |
|
- | |||||
| 33 | 3201409 | Trim-crisper Pan-rh |
|
- | |||||
| 34 | 3201411 | Trim-crisper Pan-lh |
|
- | |||||
| 35 | 5308014667 | Air Deflector |
|
- | |||||
| 36 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 38 | 5303206533 | Trim-frzr Shelf |
|
- | |||||
| 39 | 5303206539 | Glass-crisper Cover |
|
- | |||||
| *46267 | 5318609501 | Rack-ice Tray |
|
- | |||||
| *46267 | 5303206533 | Rack - Hanging - Egg |
|
- | |||||
| *46267 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 10A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 14A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 16A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 20A | 5303001380 | Screw |
|
- | |||||
| 23A | 3019040 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 23B | 3205266 | Edge Protector (non-illustrated) |
|
$ 80.09 | |||||
| 2A | 5304509705 | Grommet-rh (4) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 2B | 5304500407 | Grommet-lh (4) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 36A | 5303200590 | Extension & Insulation Air Deflector (non-illustrated) |
|
- | |||||
| 6A | 5303200329 | Gasket-crisper Cover (non-illustrated) |
|
- |
