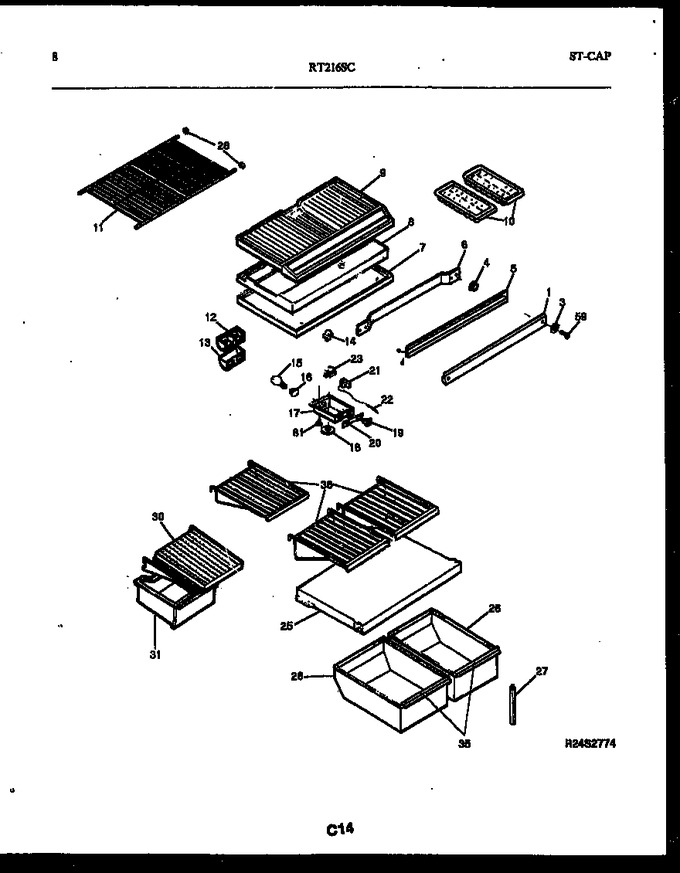

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer, Mullion Mtg, (2) |
|
- | |||||
| 5 | 5303210351 | Heater-mullion |
|
- | |||||
| 6 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 7 | 5303001651 | Top Panel-refr, W/snap Bushing |
|
- | |||||
| 7 | 5303212518 | Bushing, Snap-in, Plastic (non-illustrated) |
|
- | |||||
| 8 | 5308013674 | Divider-styrofoam |
|
- | |||||
| 8 | 3001475 | Harness-wiring, Control/divider (non-illustrated) |
|
- | |||||
| 9 | 5303210641 | Bottom Panel-frzr |
|
- | |||||
| 10 | 5303001324 | Tray-ice, Plastic |
|
- | |||||
| 11 | 3916129 | Shelf-freezer |
|
- | |||||
| 12 | 5308000071 | Deflector-air |
|
- | |||||
| 13 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 5303015152 | Box-control |
|
- | |||||
| 18 | 5308010011 | Knob-temp Control |
|
- | |||||
| 19 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 20 | 3202523 | Label-control Box |
|
- | |||||
| 21 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 22 | 5303916855 | Sleeve-plastic Tube |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 25 | 5303007603 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303207637 | Pan-crisper, Rh |
|
- | |||||
| 26 | 5303207482 | Pan-crisper, Lh |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 30 | 5318719503 | Cover-meat Pan |
|
- | |||||
| 30 | 5300115932 | Screw-meat Pan Cover (non-illustrated) |
|
- | |||||
| 30 | 5318721402 | Rail-meat Kpr Cover, Straight (non-illustrated) |
|
- | |||||
| 30 | 5318721302 | Rail-meat Kpr Cover, Offset (non-illustrated) |
|
- | |||||
| 31 | 5303207481 | Pan-meat |
|
- | |||||
| 35 | 5303292009 | Trim-crisper Pan-lh |
|
- | |||||
| 35 | 5303292008 | Trim-crisper Pan-rh |
|
- | |||||
| 36 | 5303208240 | Shelf-half, Refr, (3) |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 67806 | 5300170910 | Clip-cantilever Shlf |
|
$ 2.60 |
