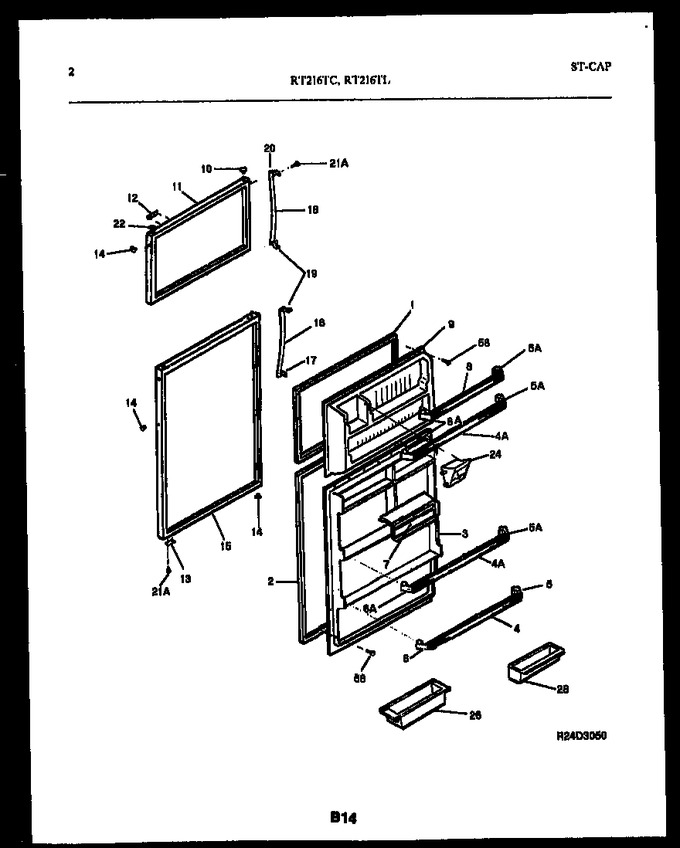

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5318680314		Gasket-frzr Door, Magnetic, White				$ 113.57
2	5303018792		Gasket-refr Door, Magnetic, White		Appelez-nous	-
3	215130001		Panel-inner Door, Refr		Appelez-nous	-
4	5303293542		Rack-door, Full-width, Wide		Appelez-nous	-
5	3206161		Support-door Rack, Rh		Appelez-nous	-
6	3206162		Support-door Rack, Lh		Appelez-nous	-
7	5303293491		Door-dairy, (2)		Appelez-nous	-
8	215139808		Rack-door		Appelez-nous	-
9	3204596		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916887		Panel-frzr Door, White		Appelez-nous	-
12	5303279148		Nameplate Assy		Appelez-nous	-
13	5308000255		Door Stop, Frzr (non Illustrated)				$ 42.20
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303916866		Panel-refr Door, White		Appelez-nous	-
17	215364800		Handle End				$ 73.92
18	5303279626		Insert-handle Grip, White (non-illustrated)		Appelez-nous	-
18	5303015111		Handle-door, (2)		Appelez-nous	-
19	215365000		Handle End, (2)		Appelez-nous	-
20	215364900		Handle End				$ 108.52
22	5308012007		Bearing-hinge		Appelez-nous	-
24	3203047		Dispenser-juice Can,white		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
28	5303285974		Bin-utility, White		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*71037	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
4A	215139807		Rack-door, (2)		Appelez-nous	-
5A	5317828701		Support-door Rack, Rh				$ 8.18
6A	5317828401		Support-door Rack, Lh				$ 11.48

    View Diagram in Separate Window       Print Part List
