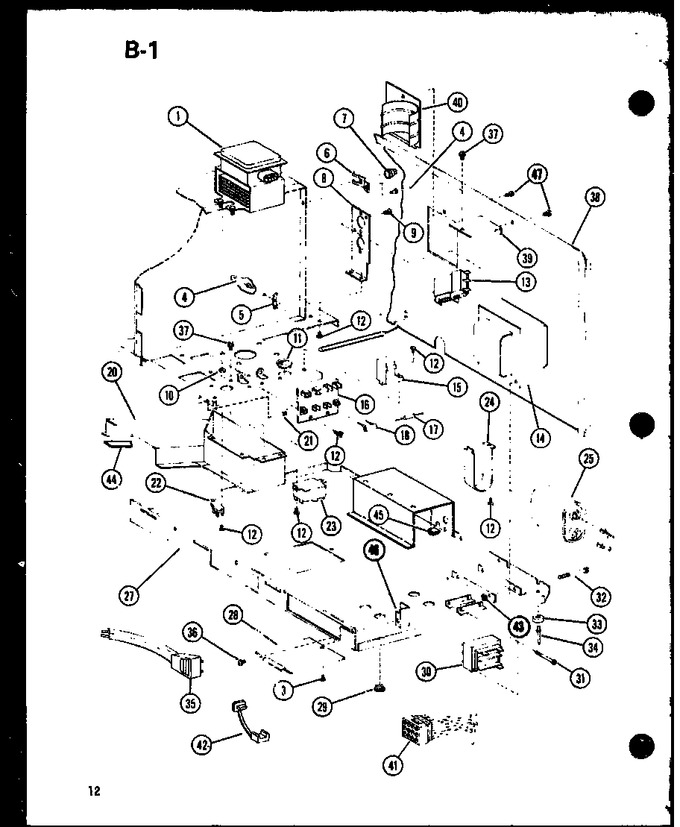

RMC-20B (BOM: P7413003M) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	C8761709	Magnetron	Appelez-nous	-
3	M0213815	Screw	Appelez-nous	-
4	A4539601	Pop Rivet	Appelez-nous	-
5	A1016301	Clip	Appelez-nous	-
6	B5725102	Clip	Appelez-nous	-
7	B5665821	Thermal Cutout	Appelez-nous	-
8	B8307702	Bracket	Appelez-nous	-
9	M0202528	Screw	Appelez-nous	-
10	M0282801	Lock-nut---k	Appelez-nous	-
11	A3293503	Snap Bushing	Appelez-nous	-
12	WP489349	Screw (Replaces: M0216515)		Immediately	$ 7.09
13	C8860501	Thermostat	Appelez-nous	-
14	D7474101	Transformer	Appelez-nous	-
15	B5767803	Kit, Diode	Appelez-nous	-
16	C8861001	Terminal Board	Appelez-nous	-
17	M0308102	Fuse	Appelez-nous	-
17	M0308109	Fuse Resistor K (Replaces: M0308107)	Appelez-nous	-
18	M0308601	Resistor A	Appelez-nous	-
18	M0308607	Resistor K	Appelez-nous	-
20	C8826901	Exhqust	Appelez-nous	-
21	M0229916	Screw T.c	Appelez-nous	-
22	B8308701	Kit, Triac Assy	Appelez-nous	-
23	B5773502	Relay K	Appelez-nous	-
24	A3257003	Strap-capacitor	Appelez-nous	-
25	59001651	Capacitor (Replaces: D8547901)			$ 43.15
27	D7404102	Basepan Weldment	Appelez-nous	-
28	B8303302	Cover Plate	Appelez-nous	-
29	M0311104	Plug	Appelez-nous	-
30	C8807805	Transformer	Appelez-nous	-
31	M0254412	Screw	Appelez-nous	-
32	M0254449	Screw	Appelez-nous	-
33	B5732505	Foot	Appelez-nous	-
34	A4539619	Pop Rivet	Appelez-nous	-
35	B8310502	Cord, Power	Appelez-nous	-
36	M0230028	Screw, No.8-32 X 5/16 Pph (blk)	Appelez-nous	-
37	WP489349	Screw (Replaces: M0216515)		Immediately	$ 7.09
38	C8829201	Back Plate Pnt	Appelez-nous	-
39	A1019901	Back Plate	Appelez-nous	-
40	B8300804	Cover Plate Pnt.	Appelez-nous	-
41	D7500401	Wiring Harness	Appelez-nous	-
42	A0319703	Strain Relief K	Appelez-nous	-
43	M0272805	Lock Washer	Appelez-nous	-
44	A3030301	Gasket (inch)	Appelez-nous	-
45	M0104102	Clip, Cord			$ 8.10
46	B8307801	Brk Oven Mounting	Appelez-nous	-
47	M0233329	Screw,sm	Appelez-nous	-
