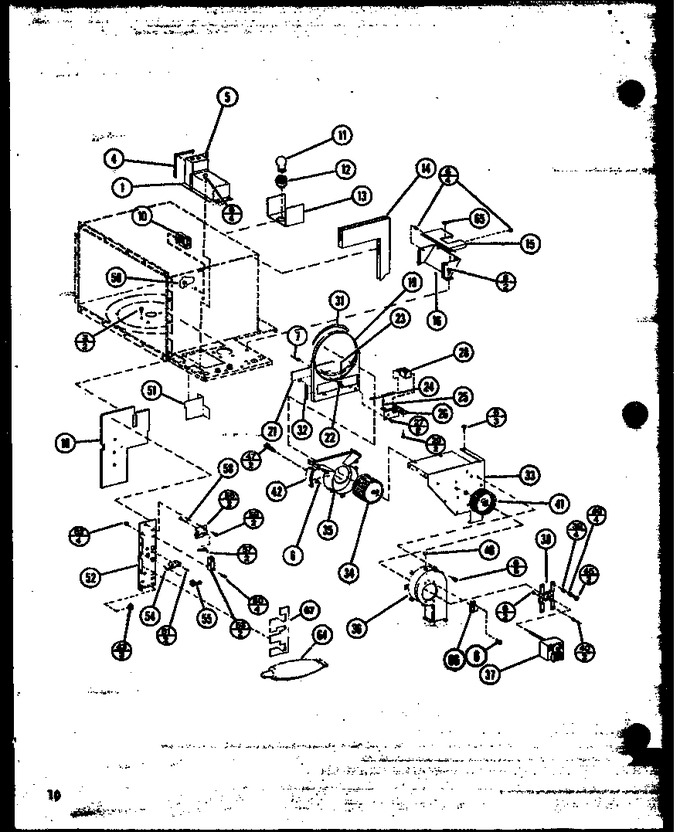

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Page 1
02 - Page 2
03 - Page 3
04 - Page 4
05 - Page 5
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8825603 | Exhust Duct |
|
- | |||||
| 3 | M0234016 | Screw |
|
- | |||||
| 4 | B8321904 | Gasket, U-channel |
|
- | |||||
| 5 | A1018104 | Gasket |
|
- | |||||
| 6 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 7 | A4539601 | Pop Rivet |
|
- | |||||
| 10 | C8845404 | Switch-jack |
|
- | |||||
| 11 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 12 | A4400701 | Socket, Oven Light |
|
- | |||||
| 13 | A1021401 | Shield Bulb |
|
- | |||||
| 14 | B8306902 | Insul-rt Oven |
|
- | |||||
| 15 | C8825302 | Duct Cover |
|
- | |||||
| 16 | C8825201 | Duct, Bl Imput |
|
- | |||||
| 18 | B8307002 | Insul-rt Oven |
|
- | |||||
| 19 | C8827403 | Air Deflector |
|
- | |||||
| 21 | B5796801 | Door-oven Air |
|
- | |||||
| 22 | B8305801 | Bracket-sol Arm |
|
- | |||||
| 23 | M1200104 | Pin |
|
- | |||||
| 24 | B8305902 | Solenoid Arm K |
|
- | |||||
| 25 | M1200101 | Roll Pin |
|
- | |||||
| 26 | C8870001 | Mtg Bracket |
|
- | |||||
| 27 | M0213815 | Screw |
|
- | |||||
| 28 | B8362001 | Solenoid K |
|
- | |||||
| 29 | M0201414 | Screw |
|
- | |||||
| 31 | B8321902 | Gasket, U-channel |
|
- | |||||
| 32 | B8321903 | Gasket, U-channel |
|
- | |||||
| 33 | D7404701 | Bracket-scroll Mtg |
|
- | |||||
| 34 | C3670805 | Blower Wheel |
|
- | |||||
| 35 | C8826801 | Scroll Wld |
|
- | |||||
| 36 | C8825404 | Blower Scroll |
|
- | |||||
| 37 | D7674401 | Motor, Blower |
|
- | |||||
| 38 | B5795401 | Mtr Mnt |
|
- | |||||
| 39 | YA0381501 | Clip, Waterline |
|
- | |||||
| 40 | A4539609 | Pop Rivet |
|
- | |||||
| 41 | C3670806 | Blower Wheel |
|
- | |||||
| 42 | B8307402 | Insul-blower Scroll |
|
- | |||||
| 43 | M0282901 | Nut, Self Thread |
|
- | |||||
| 45 | M0227303 | Screw |
|
- | |||||
| 47 | WP3400094 | Screw (Replaces: M0258055) |
|
$ 7.14 | |||||
| 48 | M0310005 | Plug |
|
- | |||||
| 49 | A0381401 | Eyelet K |
|
- | |||||
| 50 | M0281405 | Nut K |
|
- | |||||
| 51 | B8323001 | Baffle |
|
- | |||||
| 52 | D7428201 | Bracket-sw Mtg |
|
- | |||||
| 53 | C8842003 | Switch, Limit |
|
- | |||||
| 54 | B8306602 | Limit Switch |
|
- | |||||
| 55 | C8840402 | Door Guide,sleeve |
|
- | |||||
| 56 | C8829605 | Door Catch |
|
- | |||||
| 57 | B8305701 | Lever |
|
- | |||||
| 58 | A3182601 | Pin Bell-crank |
|
- | |||||
| 59 | M0234114 | Screw |
|
- | |||||
| 60 | M0202521 | Screw |
|
- | |||||
| 61 | M0229005 | Screw K |
|
- | |||||
| 62 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 64 | M0275501 | Sealer |
|
- | |||||
| 65 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 66 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 67 | C8927701 | Insulation |
|
- |
