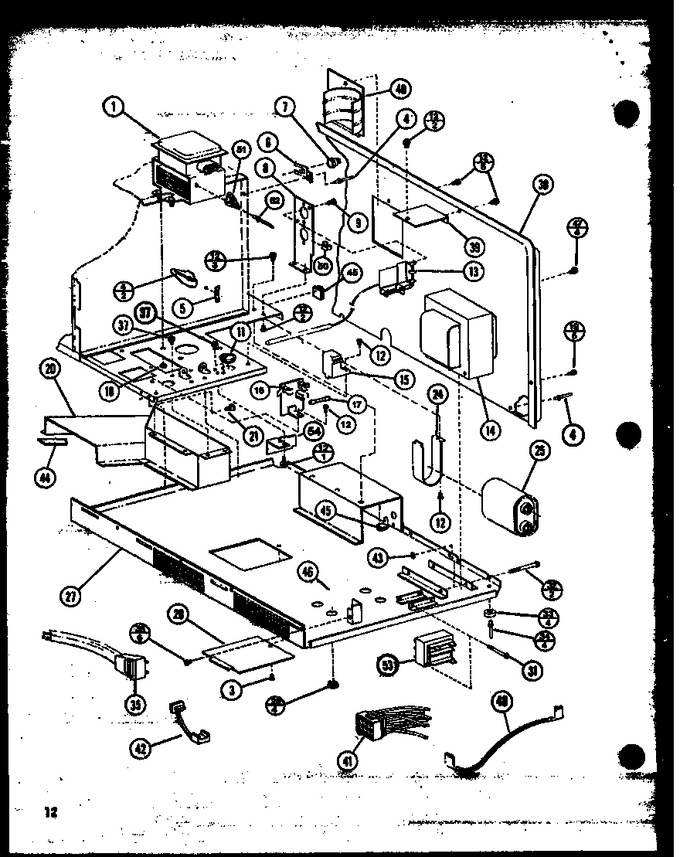

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8761711 | Magnetron |
|
- | |||||
| 3 | M0213815 | Screw |
|
- | |||||
| 4 | A4539601 | Pop Rivet |
|
- | |||||
| 5 | A1016301 | Clip |
|
- | |||||
| 6 | B5725102 | Clip |
|
- | |||||
| 7 | B5665821 | Thermal Cutout |
|
- | |||||
| 8 | B8307702 | Bracket |
|
- | |||||
| 9 | M0202528 | Screw |
|
- | |||||
| 10 | M0282801 | Lock-nut---k |
|
- | |||||
| 11 | A3293503 | Snap Bushing |
|
- | |||||
| 12 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 13 | C8860501 | Thermostat |
|
- | |||||
| 14 | D7474103 | Transformer |
|
- | |||||
| 15 | B8329802 | Kit, Diode |
|
- | |||||
| 16 | C8845902 | Terminal Board |
|
- | |||||
| 17 | WPM0805102 | Fuse 15 Amp (Replaces: M0805102) |
|
$ 21.25 | |||||
| 19 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 20 | C8826901 | Exhqust |
|
- | |||||
| 21 | M0229916 | Screw T.c |
|
- | |||||
| 24 | A3257003 | Strap-capacitor |
|
- | |||||
| 27 | D7404112 | Base Pan |
|
- | |||||
| 28 | B8303303 | Back Plate Pnt |
|
- | |||||
| 29 | M0311104 | Plug |
|
- | |||||
| 31 | M0253509 | Screw |
|
- | |||||
| 32 | M0254449 | Screw |
|
- | |||||
| 33 | B5732505 | Foot |
|
- | |||||
| 34 | A4539619 | Pop Rivet |
|
- | |||||
| 35 | B8310502 | Cord, Power |
|
- | |||||
| 36 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 37 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 38 | C8829203 | Back Plate Pnt |
|
- | |||||
| 39 | A1019901 | Back Plate |
|
- | |||||
| 40 | B8300805 | Cover Plate Pnt. |
|
- | |||||
| 41 | D7671401 | Wiring Harness, Oven |
|
- | |||||
| 42 | A0319703 | Strain Relief K |
|
- | |||||
| 43 | M0272805 | Lock Washer |
|
- | |||||
| 44 | A3030301 | Gasket (inch) |
|
- | |||||
| 45 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 46 | B8307801 | Brk Oven Mounting |
|
- | |||||
| 47 | M0233329 | Screw,sm |
|
- | |||||
| 48 | C8849601 | Jumper Wire |
|
- | |||||
| 48 | D7292655 | Jumper Wire |
|
- | |||||
| 50 | M0110508 | Clip |
|
- | |||||
| 51 | B5795304 | Fuse, Thermal |
|
- | |||||
| 52 | B5795304 | Fuse, Thermal |
|
- | |||||
| 53 | C8807811 | Transformer Filament |
|
- | |||||
| 54 | B8323501 | Baffle, Transformer |
|
- | |||||
| NI | A1026402 | Owners Manual |
|
- | |||||
| NI | A1011904 | Cookbook |
|
- | |||||
| NI | A1049303 | Owners Manual |
|
- |
