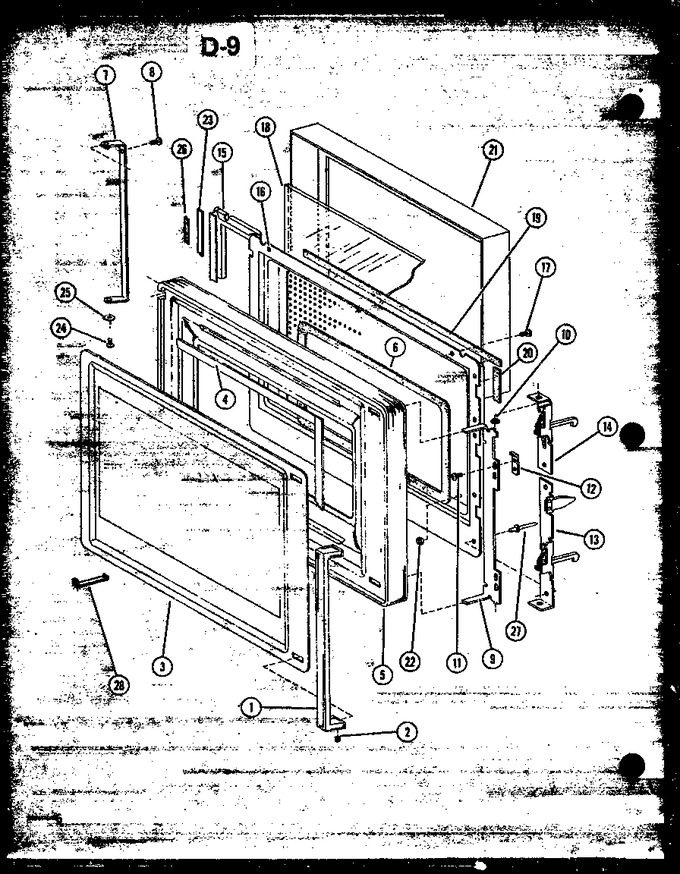

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8830803		Handle		Appelez-nous	-
2	M0208328		Screw		Appelez-nous	-
3	D7412301		Lens, Door		Appelez-nous	-
4	M0275159		Tape Roll (72 Yds/roll)		Appelez-nous	-
5	D7412402		Door Casting		Appelez-nous	-
6	A1018101		Gasket		Appelez-nous	-
7	C8836501		Door Hinge		Appelez-nous	-
8	WPW10068250		Screw   (Replaces: M0234424)				$ 3.66
9	C8841001		Actuator-latch		Appelez-nous	-
10	B8306202		Bushing		Appelez-nous	-
11	M0202515		Screw A		Appelez-nous	-
12	B8314502		Adjustor		Appelez-nous	-
13	R0183067		Lwr Door Latch Assy		Appelez-nous	-
14	R0183068		Upper Door Latch Assy		Appelez-nous	-
15	D7447702		Gasket		Appelez-nous	-
16	C8840501		Inner Door Assy		Appelez-nous	-
17	M0258518		Screw		Appelez-nous	-
18	A1004901		Window-inner		Appelez-nous	-
19	A1018102		Gasket, Top And Bottom		Appelez-nous	-
20	A1018103		Gasket, Sides		Appelez-nous	-
21	D7410801		Door-inner		Appelez-nous	-
22	A1021301		Nut		Appelez-nous	-
23	M0275115		Tape Per Roll		Appelez-nous	-
24	M0258901		Screw		Appelez-nous	-
25	M0274045		Washer		Appelez-nous	-
26	M0275581		Sealer Rtv-clear		Appelez-nous	-
27	A4539601		Pop Rivet		Appelez-nous	-
28	B8307503		Arm-door Stop		Appelez-nous	-
