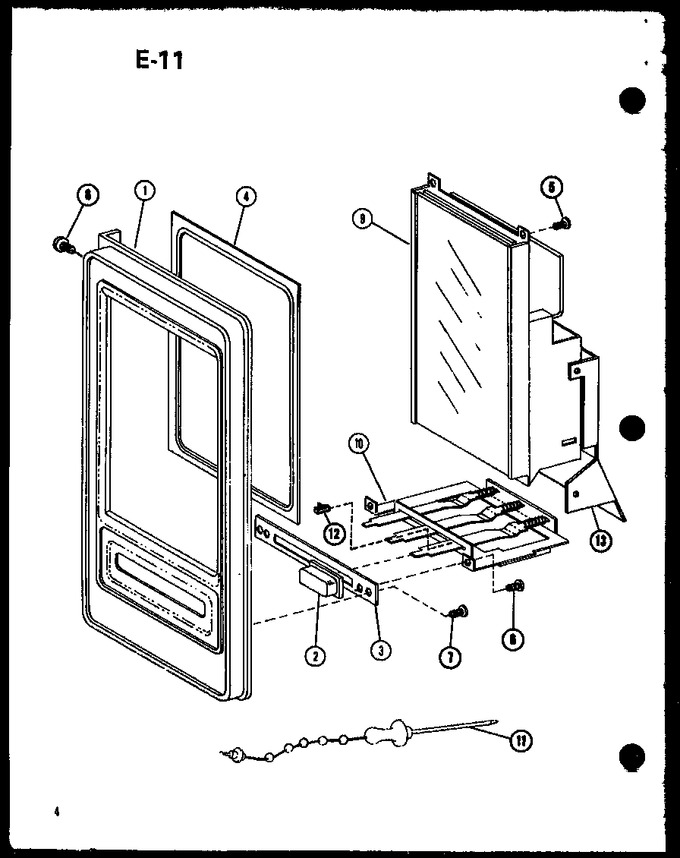

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7480801 | Escutcheon |
|
- | |||||
| 2 | C8869501 | Start Button |
|
- | |||||
| 2 | C8869301 | Light Button |
|
- | |||||
| 2 | C8869401 | Stop Button |
|
- | |||||
| 3 | B8327701 | Switch Mtg Brk |
|
- | |||||
| 4 | C8866301 | Gasket |
|
- | |||||
| 5 | M0234114 | Screw |
|
- | |||||
| 6 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 7 | M0234003 | Screw |
|
- | |||||
| 8 | M0253217 | Screw |
|
- | |||||
| 9 | R0163043 | Module Rmc30 |
|
- | |||||
| 10 | D7546302 | Switch Ssl K |
|
- | |||||
| 11 | B8312501 | Temp Probe |
|
- | |||||
| 12 | A1039301 | Spring |
|
- |
