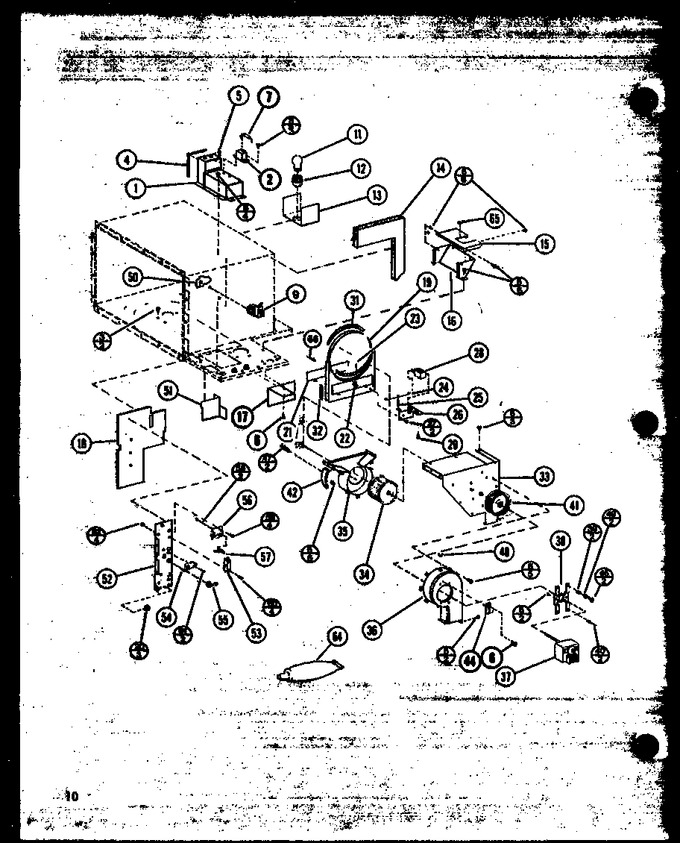

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8825603		Exhust Duct		Appelez-nous	-
2	C8845503		Relay K		Appelez-nous	-
3	M0234016		Screw		Appelez-nous	-
4	B8321904		Gasket, U-channel		Appelez-nous	-
5	A1018104		Gasket		Appelez-nous	-
6	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
7	B8329401		Cap & Resistor Assy		Appelez-nous	-
8	M0213815		Screw		Appelez-nous	-
9	B8355401		Temp Probe Jack K		Appelez-nous	-
11	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
12	A4400701		Socket, Oven Light		Appelez-nous	-
13	A1021401		Shield Bulb		Appelez-nous	-
14	B8306902		Insul-rt Oven		Appelez-nous	-
15	C8825302		Duct Cover		Appelez-nous	-
16	C8825201		Duct, Bl Imput		Appelez-nous	-
17	B8323501		Baffle, Transformer		Appelez-nous	-
18	B8307002		Insul-rt Oven		Appelez-nous	-
19	C8827403		Air Deflector		Appelez-nous	-
20	M0282901		Nut, Self Thread		Appelez-nous	-
21	B5796801		Door-oven Air		Appelez-nous	-
22	B8305801		Bracket-sol Arm		Appelez-nous	-
23	M1200104		Pin		Appelez-nous	-
24	B8305902		Solenoid Arm K		Appelez-nous	-
25	M1200101		Roll Pin		Appelez-nous	-
26	C8870001		Mtg Bracket		Appelez-nous	-
27	M0213815		Screw		Appelez-nous	-
28	R0157446		Rmc Solenoid Kit		Appelez-nous	-
29	M0201414		Screw		Appelez-nous	-
31	B8321902		Gasket, U-channel		Appelez-nous	-
32	B8321903		Gasket, U-channel		Appelez-nous	-
33	D7404701		Bracket-scroll Mtg		Appelez-nous	-
34	C3670805		Blower Wheel		Appelez-nous	-
35	C8826801		Scroll Wld		Appelez-nous	-
36	C8825404		Blower Scroll		Appelez-nous	-
37	D7674401		Motor, Blower		Appelez-nous	-
38	B5795401		Mtr Mnt		Appelez-nous	-
39	YA0381501		Clip, Waterline		Appelez-nous	-
40	A4539609		Pop Rivet		Appelez-nous	-
41	C3670806		Blower Wheel		Appelez-nous	-
42	B8307402		Insul-blower Scroll		Appelez-nous	-
44	M0104102		Clip, Cord				$ 8.10
45	M0227303		Screw		Appelez-nous	-
47	WP3400094		Screw   (Replaces: M0258055)				$ 7.14
48	M0310005		Plug		Appelez-nous	-
49	A0381401		Eyelet K		Appelez-nous	-
50	M0281405		Nut K		Appelez-nous	-
51	B8323001		Baffle		Appelez-nous	-
52	D7428201		Bracket-sw Mtg		Appelez-nous	-
53	C8842005		Switch Limit		Appelez-nous	-
53	C8842003		Switch, Limit		Appelez-nous	-
54	B8306602		Limit Switch		Appelez-nous	-
55	C8840402		Door Guide,sleeve		Appelez-nous	-
56	C8829605		Door Catch		Appelez-nous	-
57	B8305701		Lever		Appelez-nous	-
58	A3182601		Pin Bell-crank		Appelez-nous	-
59	M0234114		Screw		Appelez-nous	-
60	M0202521		Screw		Appelez-nous	-
61	M0229005		Screw K		Appelez-nous	-
62	M0282005		Nut K				$ 7.07
64	M0275537		Sealer Rtv-clear		Appelez-nous	-
65	A3030301		Gasket (inch)		Appelez-nous	-
66	A4539601		Pop Rivet		Appelez-nous	-
