Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0087026 Knob, Clock Appelez-nous -
2 Y0087018 Knob, Therm., Upper Oven Appelez-nous -
3 0087019 Use 0087026 Appelez-nous -
4 0088713 Frame, Control Panel Appelez-nous -
5 Y0087011 Glass, Control Panel Appelez-nous -
6 0087015 Clock Appelez-nous -
7 Y0088787 Sub 88788, Rubber Bumper Appelez-nous -
8 Y0088735 Control Panel Bracket Appelez-nous -
9 0088127 Oven Thermostat Appelez-nous -
NI 0088560 Switch, Light Appelez-nous -

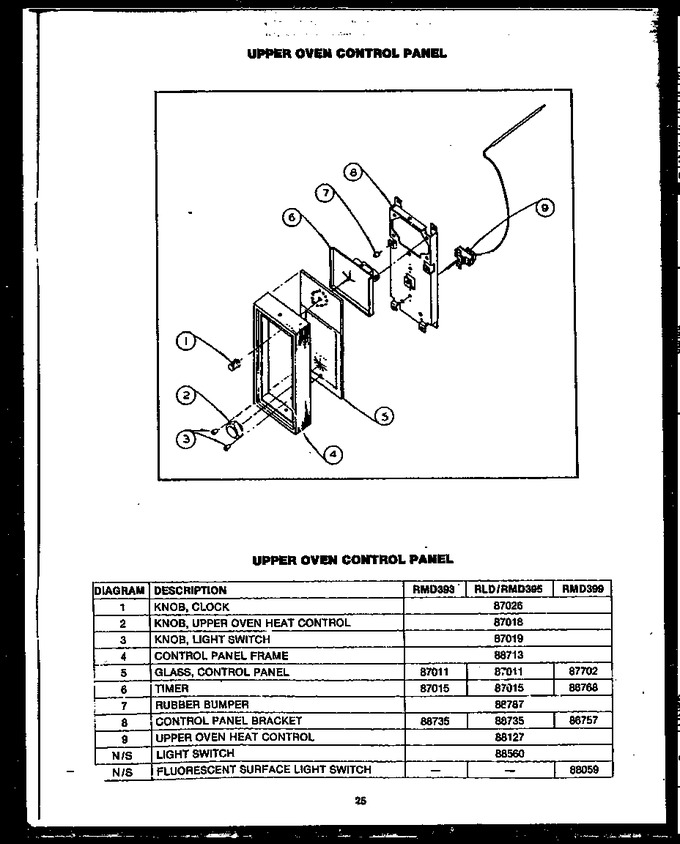

    View Diagram in Separate Window     Print Icon   Print Part List
