SELECT A DIAGRAM

01 - Black Glass Broiler Door Components


02 - Cabinet Assy 20``


03 - Lower Oven Door Components


04 - Lw Broilercompnt N201e09 Lw Ovencompnt


05 - Oven Door - Black Glass


06 - Page 2

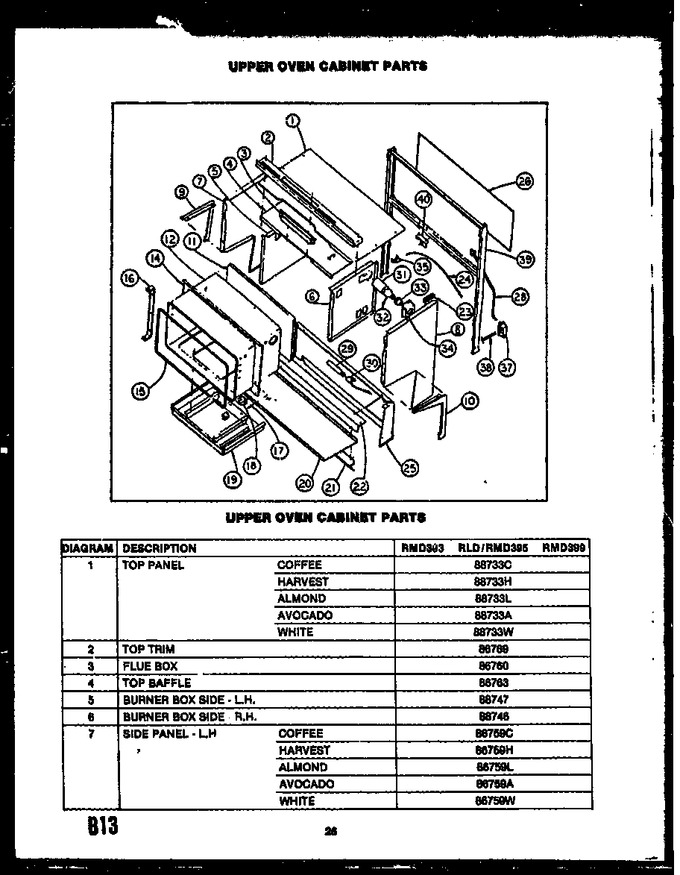

07 - Upper Oven Cabinet Parts


08 - Upper Oven Components


09 - Upper Oven Control Panel


10 - Upper Oven Door Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y088733W		Top Panel, White		Appelez-nous	-
1	88733A		Top Panel Avocado		Appelez-nous	-
1	88733L		Top Panel Almond		Appelez-nous	-
1	88733H		Top Panel Harvest		Appelez-nous	-
1	88733C		Top Panel, Dark Copper		Appelez-nous	-
2	86769		Top Trim		Appelez-nous	-
3	Y0086760		Flue Box		Appelez-nous	-
4	Y0086763		Insulation, Top		Appelez-nous	-
5	Y88747		Burner Box Side-l.h.		Appelez-nous	-
6	Y0088746		Burner Box Side, R.h.		Appelez-nous	-
7	Y086759C		Side Panel, Up Ov, Lh, Cof		Appelez-nous	-
7	Y086759A		Side Panel, Up Ov, Lh Avo		Appelez-nous	-
7	Y086759H		Side Panel, Up Ov, Lh, Hvst		Appelez-nous	-
7	086759L		Side Panel, Up Ov, Lh, Amd		Appelez-nous	-
7	Y086759W		Side Panel, Up Ov, Lh, Wht		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
