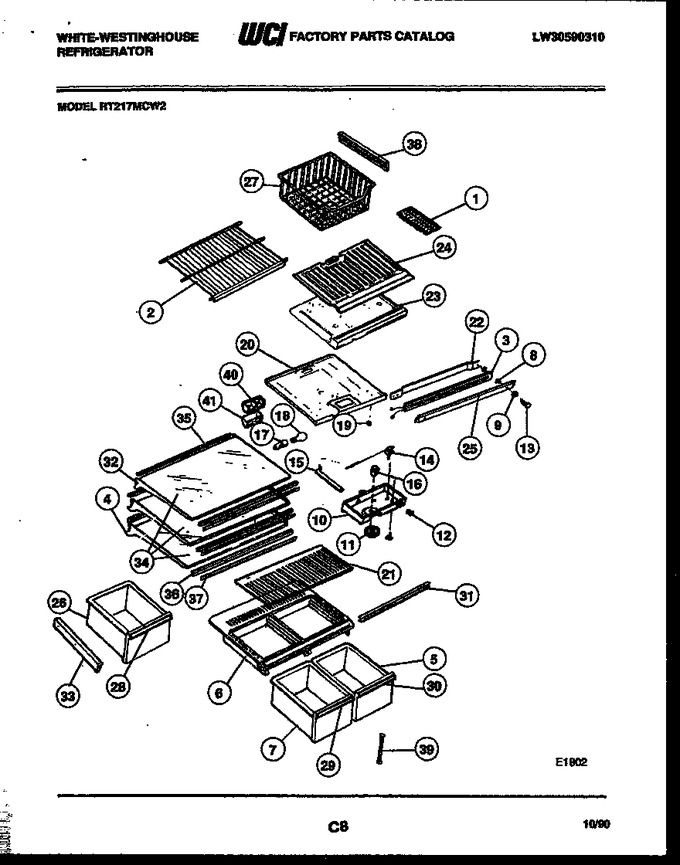

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001324 | Ice Tray (2) |
|
- | |||||
| 2 | 5303206520 | Shelf-freezer |
|
- | |||||
| 3 | 3018916 | Heater-mullion |
|
- | |||||
| 4 | 3200616 | Frame-cantilever (2) |
|
- | |||||
| 5 | 5303206354 | Pan Crisper-rh |
|
- | |||||
| 6 | 5303206538 | Cover-crisper |
|
- | |||||
| 7 | 3206311 | Pan - Crisper - Lh |
|
- | |||||
| 8 | 3200464 | Spacer-mullion (2) |
|
- | |||||
| 9 | G166847 | Washer-no. 10 Steel (2) |
|
- | |||||
| 10 | 3206130 | Control Box |
|
- | |||||
| 11 | 3201777 | Knob-temperature Control |
|
- | |||||
| 12 | 3206129 | Switch-energy Saver |
|
- | |||||
| 13 | 08012258 | Screw |
|
- | |||||
| 14 | 3018894 | Control-temperature |
|
- | |||||
| 15 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 16 | G187484 | Timer-defrost |
|
- | |||||
| 17 | 08000815 | Light Socket |
|
- | |||||
| 18 | 3001179 | Light Bulb |
|
- | |||||
| 19 | 09918806 | Light Switch |
|
- | |||||
| 20 | 3019038 | Top, Refrigerator |
|
- | |||||
| 21 | 5303206539 | Glass-crisper Cover |
|
- | |||||
| 22 | 08010008 | Strap-mullion Mtg |
|
- | |||||
| 23 | 3019039 | Divider-styrofoam |
|
- | |||||
| 24 | 3001472 | Bottom-freezer |
|
- | |||||
| 25 | 3200367 | Mullion-avocado |
|
- | |||||
| 26 | 5303206542 | Meat Pan |
|
- | |||||
| 27 | 5303206524 | Basket-frzr |
|
- | |||||
| 28 | 5303206541 | Trim - Meat Pan |
|
- | |||||
| 29 | 3206308 | Trim-crisper Pan-lh |
|
- | |||||
| 30 | 3206317 | Trim-crisper Pan-rh |
|
- | |||||
| 31 | 5303206540 | Trim - Crisper Cover |
|
- | |||||
| 32 | 5303211349 | Frame-meat Keep Shelf |
|
- | |||||
| 33 | 5303210016 | Hanger, Meat Pan, Lh |
|
$ 134.09 | |||||
| 34 | 5303211350 | Glass-shelf (3) |
|
- | |||||
| 35 | 5303211348 | Trim-rear Shelf (3) |
|
- | |||||
| 36 | 5303209274 | Retainer-glass (3) |
|
- | |||||
| 37 | 5303206537 | Trim-shelf (3) |
|
- | |||||
| 38 | 5303206521 | Hanger-frzr Bskt-rh |
|
- | |||||
| 39 | 3205987 | Support-crisper Cover-adj |
|
- | |||||
| 40 | 3204206 | Deflector - Air |
|
- | |||||
| 41 | G162178 | Cover, Air Deflector |
|
- | |||||
| *35386 | 5303206533 | Rack - Hanging - Egg |
|
- | |||||
| *35386 | G170910 | Clip-cantilever Shelf-shipping (6) |
|
- | |||||
| *35387 | G187363 | Screw |
|
- | |||||
| *35387 | G186095-01 | Rack-ice Tray |
|
- | |||||
| 10A | G187363 | Screw |
|
- | |||||
| 14A | G107080 | Screw |
|
- | |||||
| 16A | G105289 | Screw |
|
- | |||||
| 20A | G162673 | Screw-top Mtg (3) (non-illustrated) |
|
- | |||||
| 23A | 3019040 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 23B | 3205266 | Protector-edge (2) (non-illustrated) |
|
$ 80.09 | |||||
| 2A | 3201150 | Cap-protector (2) (non-illustrated) |
|
$ 4.57 | |||||
| 2B | 5303206523 | Trim-shelf (non-illustrated) |
|
- | |||||
| 2C | G167565 | Grommet-rh (4) (non-illustrated) |
|
- | |||||
| 2D | G176993 | Grommet-lh (4) (non-illustrated) |
|
- | |||||
| 33A | 5303210017 | Hanger, Meat Pan, Rh (non Illustrated) |
|
$ 107.89 | |||||
| 33B | 08014528 | Screw (2) (non-illustrated) |
|
$ 4.31 | |||||
| 35A | 5303211351 | Clip-trim Rear (6) (non-illustrated) |
|
- | |||||
| 38A | 5303206522 | Hanger-frzr Bskt-lh |
|
- | |||||
| 6A | 3200329 | Gasket-crisper Cover (non-illustrated) |
|
- |
