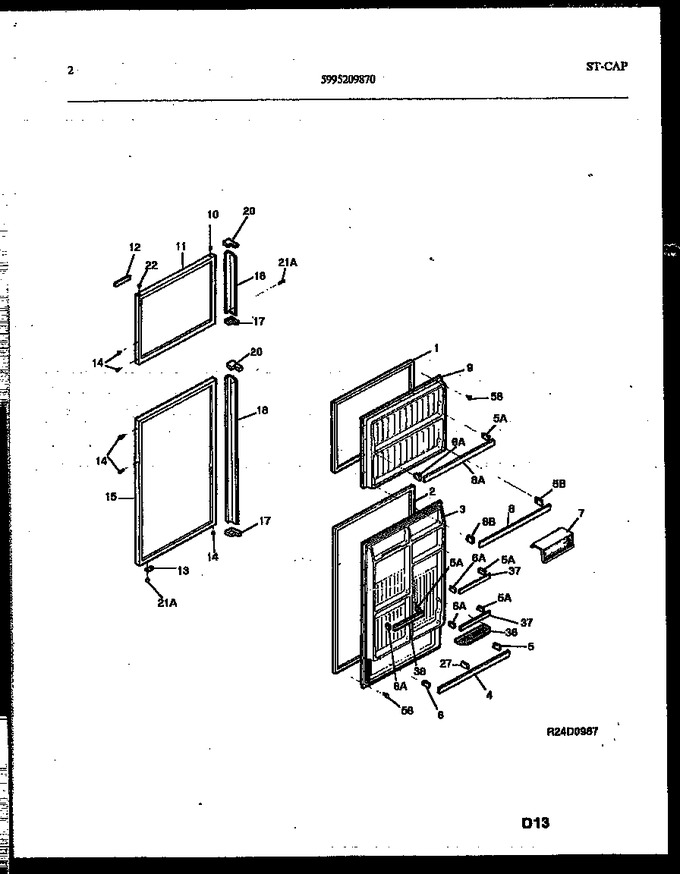

02 - Door Parts


04 - Cabinet Parts


06 - Shelves And Supports


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5318680314		Gasket-frzr Door, Magnetic				$ 113.57
2	5303018792		Gasket-refr Door, Magnetic		Appelez-nous	-
3	5303206513		Panel-inner Door, Refr		Appelez-nous	-
4	5303206518		Rack-door, Refrigerator		Appelez-nous	-
5	5303206516		Support-door Rack, Rh		Appelez-nous	-
6	5303206517		Support-door Rack, Lh				$ 56.33
7	3206304		Door-dairy		Appelez-nous	-
8	5303206510		Rack-door, Freezer		Appelez-nous	-
9	5303206509		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000176		Button Plug, Wheat, Hinge Brg Hole		Appelez-nous	-
11	5303916618		Panel-frzr Door, Wheat		Appelez-nous	-
12	3206159		Nameplate Assy		Appelez-nous	-
13	5308000255		Door Stop, Frzr (non Illustrated)				$ 42.20
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	5308000180		Button Plug, Wheat, Handle/dr Stop		Appelez-nous	-
15	5303916623		Panel-refr Door, Wheat		Appelez-nous	-
17	5300177143		Handle End-bottom (2)		Appelez-nous	-
18	5303276925		Handle-door, Frzr		Appelez-nous	-
18	5300177144		Clip-door Handle, (4) (non-illustrated)		Appelez-nous	-
18	5300179271		Trim-handle End-bottom (2) (non-illustrated)		Appelez-nous	-
18	5300179270		Trim-handle End-top (2) (non-illustrated)		Appelez-nous	-
18	5303276493		Handle-door, Refr		Appelez-nous	-
20	5300177142		Handle End-top (2)		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
27	5303206514		Snugger-door Rack		Appelez-nous	-
36	3206189		Shelf - Flip-up				$ 50.61
37	3206191		Rack-door, Small, (2)		Appelez-nous	-
38	5303206515		Rack-door, Medium		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
51121	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
51121	3206307		Bottle Retainer		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
5A	3206165		Support-door Rack, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Lh		Appelez-nous	-
8A	5303206511		Rack-door, Frzr		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
