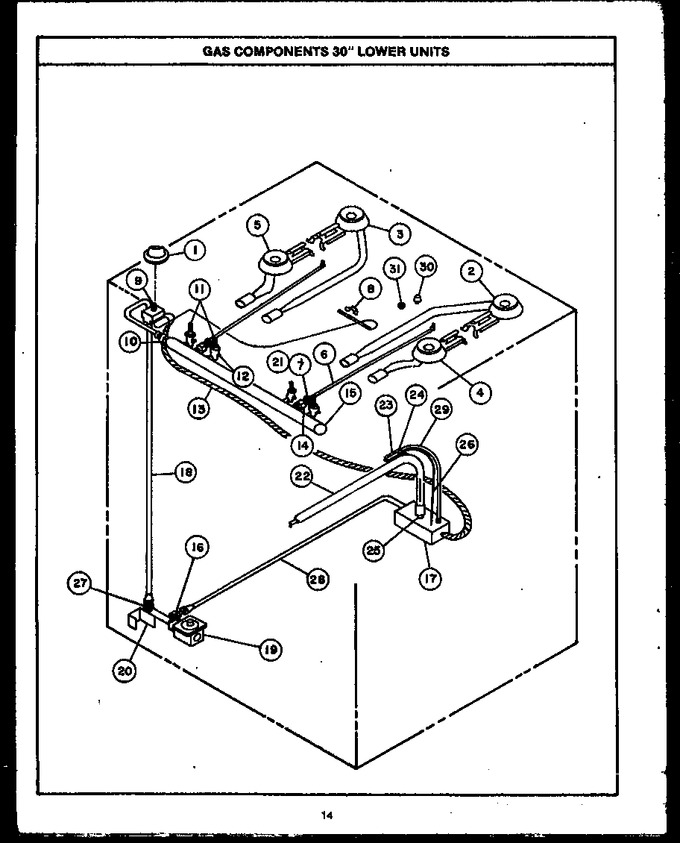

04 - Gas Components 30`` Lower Units


05 - Oven Door With Full Black Glass


06 - Page 1


07 - Upper Oven Door Parts


08 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y68321		Knob, Oven Heat Control		Appelez-nous	-
1	68323		Knob, Top Burner		Appelez-nous	-
2	74376		Burner Assembly-right Rear		Appelez-nous	-
3	Y74377		Burner Assembly-left Rear		Appelez-nous	-
4	74378		Burner Assembly-right Front		Appelez-nous	-
5	Y74379		Burner Assembly-left Front		Appelez-nous	-
6	70281		Tubing, Top Pilot		Appelez-nous	-
7	Y0097930		1/8`` Compression Nut		Appelez-nous	-
8	Y79740		Clip, Spring		Appelez-nous	-
9	0093109		X Thermostat, Oven		Appelez-nous	-
10	Y0097459		Straight Connector		Appelez-nous	-
11	70566		Valve, Top Burner Univ.		Appelez-nous	-
12	0097617		Hood Orif Nbr 54		Appelez-nous	-
13	76959		Wire Harness - Ohc				$ 55.82
14	76499		Valve, Top Pilot W/ Filter		Appelez-nous	-
15	65003		Manifold		Appelez-nous	-
16	74440		Valve, Shut Off		Appelez-nous	-
17	73895		Valve, Gas - Univ.		Appelez-nous	-
18	Y72096		Tubing W/fittings-inlet Manifo		Appelez-nous	-
19	70976		Rugular, Pressure - Univ.		Appelez-nous	-
20	70236		Pipe Nipple Assembly		Appelez-nous	-
21	Y0096789		1/8`` Sleeve		Appelez-nous	-
22	76947		Oven Burner		Appelez-nous	-
23	Y0090841		Oven Pilot Assy W/.012 Orifice		Appelez-nous	-
24	79768		Orifice, .012`` Oven Pilot		Appelez-nous	-
25	0097641		Hood Orif Nbr 47		Appelez-nous	-
26	Y0092548		Oven Pilot Generator		Appelez-nous	-
27	72129		Straight Connector 3/8`` Fl. X				$ 17.39
28	69789		Tubing W/fitting 3/8`` Gas Vavl		Appelez-nous	-
29	Y76625		Tubing 3/16`` Valve To Oven Pil		Appelez-nous	-
30	20069		Lighter Cup Cone		Appelez-nous	-
31	Y72286		Nut		Appelez-nous	-
