Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0096761 Trim Frame, Control Panel Appelez-nous -
2 67614 Glass, Control Panel   (Replaces: 64911) Special Order $ 26.92

3 64895 Knob, Oven Heat Control Appelez-nous -
4 68084 Knob Appelez-nous -
5 Y65487 Clock, 60 Cycle Appelez-nous -
6 Y0096700 Mtg Clips, Control Box Appelez-nous -
7 64910 Control Box Appelez-nous -
8 0092372 Screw 6x1/4 Phil Pan Hd Appelez-nous -
9 M0282005 Nut K   (Replaces: Y0097887) Special Order $ 7.07

10 Y72004 Mounting Plate Appelez-nous -
11 DE81-06402A Oven Heat Control   (Replaces: 72005) Special Order $ 116.28


    View Diagram in Separate Window     Print Icon   Print Part List

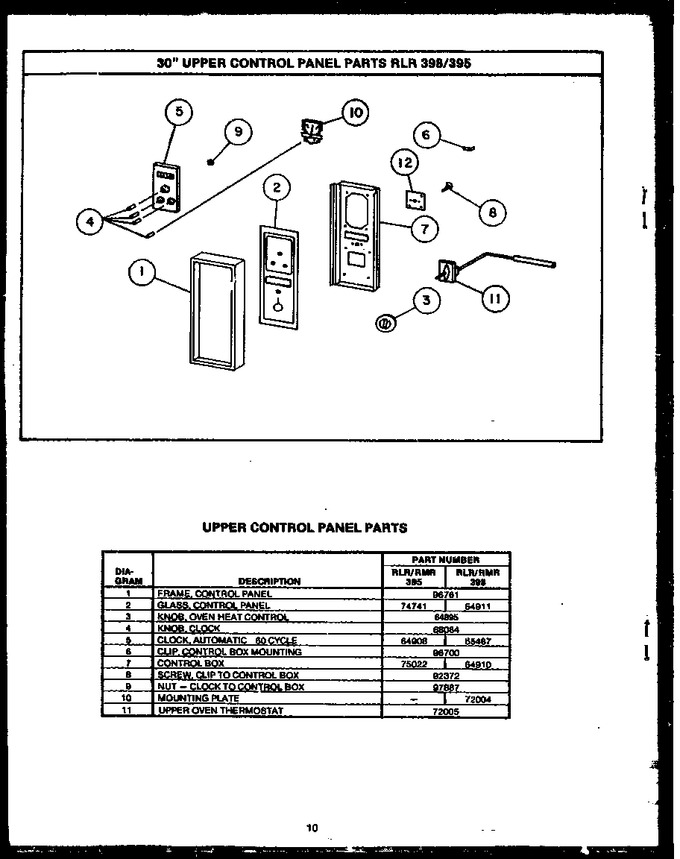

Diagram for RMR398
