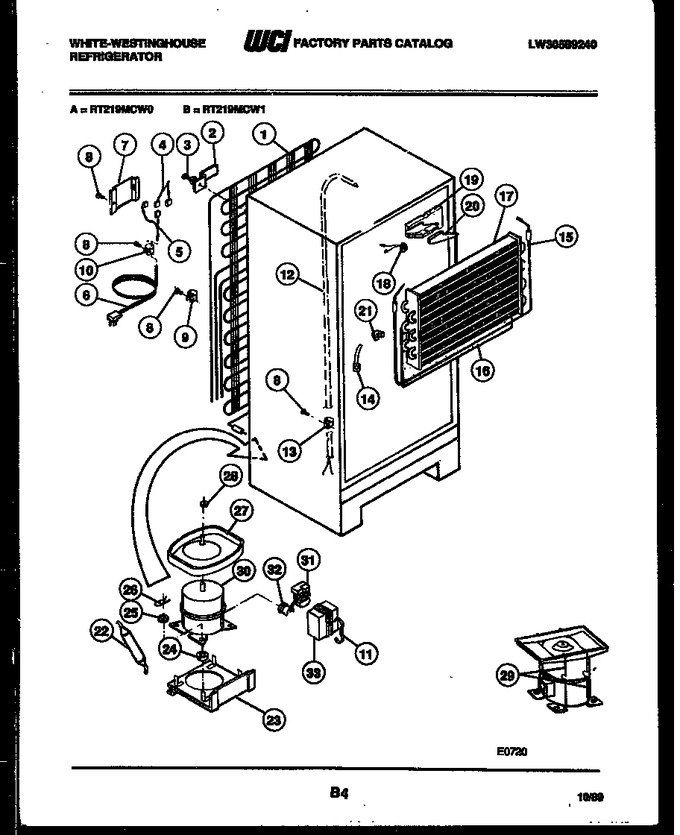

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G163133 | Condenser |
|
- | |||||
| 2 | 3001342 | Bracket-condenser Mtg (4) |
|
- | |||||
| 3 | G160578 | Screw |
|
- | |||||
| 4 | 3019040 | Wiring Harn-control |
|
- | |||||
| 5 | G166062-01 | Wiring Harness-compr |
|
- | |||||
| 6 | G162549-01 | Service Cord |
|
- | |||||
| 7 | G183584 | Cover, Wiring |
|
- | |||||
| 8 | G187009 | Screw-8-15 X 1/2 |
|
- | |||||
| 9 | G168978 | Nylon Clamp |
|
- | |||||
| 10 | 3001199 | Clamp |
|
- | |||||
| 11 | G166057 | Strap-term Cover |
|
- | |||||
| 12 | G177531 | Heat Exchanger |
|
- | |||||
| 13 | 08000133 | Clamp |
|
- | |||||
| 14 | G165546 | Strap-evap/heater (2) |
|
- | |||||
| 15 | G178425-01 | Heater, Defrost |
|
- | |||||
| 16 | G166511-02 | Insulator-evaporator |
|
- | |||||
| 17 | G162506 | Evaporator Coil |
|
- | |||||
| 18 | G162690-01 | Thermostat, Defrost |
|
- | |||||
| 19 | G185299 | Insulation Block-rh |
|
- | |||||
| 20 | G185276 | Insulation Plug-rh |
|
- | |||||
| 21 | G188375 | Insulation Block-lh |
|
- | |||||
| 22 | 08000027 | Drier-filter |
|
- | |||||
| 23 | 08013663 | Plate-compr Mtg |
|
- | |||||
| 24 | 08008778 | Grommet (4) |
|
- | |||||
| 25 | G164634 | Washer (4) |
|
- | |||||
| 26 | G163204 | Clip (4) |
|
- | |||||
| 27 | G184715 | Pan-defrost-svce Comp |
|
- | |||||
| 28 | G164958 | Lock Nut-pan Mtg |
|
- | |||||
| 29 | 3916001 | Pan Retainer Kit-service Compr |
|
- | |||||
| 30 | 3916012 | Compressor W/ Electricals-service |
|
- | |||||
| 31 | 3007173 | Relay |
|
- | |||||
| 32 | 08017532 | Overload |
|
- | |||||
| 33 | 3006411 | Cover-terminal |
|
- | |||||
| *23348 | G189383 | Hot Tube Repair Kit-svce |
|
- | |||||
| 27A | G184715 | Pan-defrost-orig Comp (non-illustrated) |
|
- | |||||
| 27B | G169873 | Sound Tape-pan (non-illustrated) |
|
- | |||||
| 30A | 3916391 | Capacitor-run (non-illustrated) |
|
- | |||||
| 3A | G164820 | Washer-no. 10 Ext Tooth (non-illustrated) |
|
- |
