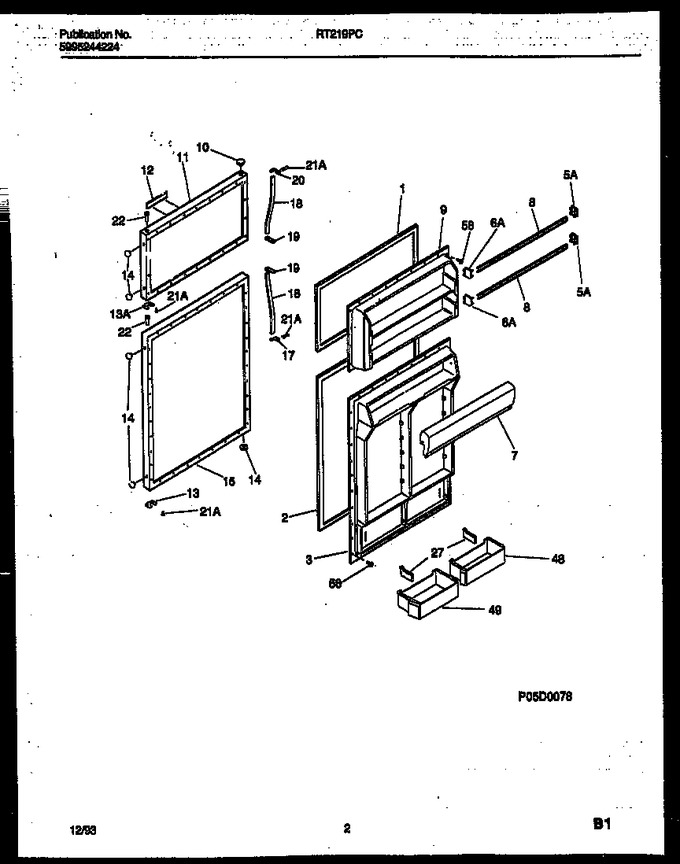

02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5318680314 | Gasket-frzr Door, Magnetic, White |
|
$ 113.57 | |||||
| 2 | 5303018792 | Gasket-refr Door, Magnetic, White |
|
- | |||||
| 3 | 5303275674 | Panel-inner Door, Refr |
|
- | |||||
| 7 | 215918400 | Door-dairy |
|
- | |||||
| 8 | 5303280193 | Rack-door, (2) |
|
- | |||||
| 9 | 5303206631 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916887 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 5315340760 | Tape-double Faced, Foam, 60`` Pc, Trim/nameplate (non-illustrated) |
|
- | |||||
| 12 | 5303280047 | Label-nameplate (non-illustrated) |
|
- | |||||
| 12 | 5303279148 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916866 | Panel-refr Door, White, W/ Insulation |
|
- | |||||
| 15 | 215894100 | Brace-cross (non-illustrated) |
|
- | |||||
| 17 | 215364800 | Handle End |
|
$ 73.92 | |||||
| 18 | 5303279626 | Insert-handle Grip, White (non-illustrated) |
|
- | |||||
| 18 | 5303211209 | Insert-handle Grip, Almond, (non-illustrated) |
|
- | |||||
| 18 | 5303015111 | Handle-door |
|
- | |||||
| 19 | 215365000 | Handle End, (2) |
|
- | |||||
| 20 | 215364900 | Handle End |
|
$ 108.52 | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 27 | 5303279906 | Snugger-door Bin, ``paddle Type``, Small (non-illustrated) |
|
- | |||||
| 27 | 5303275732 | Snugger-door Bin, ``paddle Type``, Large |
|
- | |||||
| 48 | 5303279796 | Bin-door, 2 Liter, (2) |
|
- | |||||
| 49 | 5303279794 | Bin-door, Gallon, (2) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *83520 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 5308000255 | Door Stop-frzr |
|
$ 42.20 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 5A | 3206165 | Support-door Rack, Rh |
|
Immediately | $ 8.19 | ||||
| 6A | 3206166 | Support-door Rack, Lh |
|
Immediately | $ 9.93 |
