New Model Search:

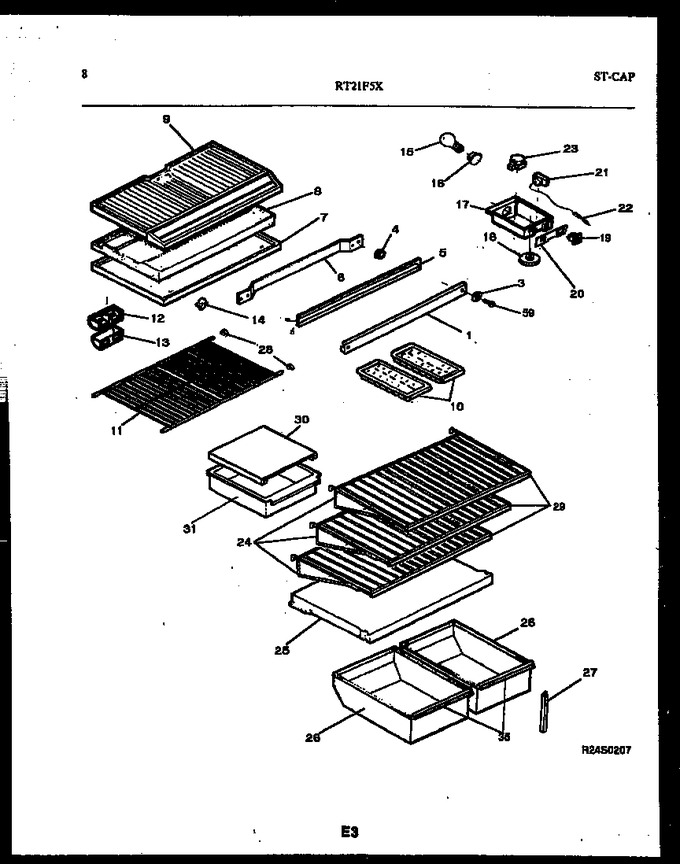

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer, Mullion Mtg, (2) |
|
- | |||||
| 5 | 5303210351 | Heater-mullion |
|
- | |||||
| 6 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 7 | 3019038 | Top Panel-refr |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 8 | 5303019039 | Divider, Styrofoam |
|
- | |||||
| 8 | 3019040 | Wiring Harness, Control/divider (non-illustrated) |
|
- | |||||
| 9 | 5303210641 | Bottom Panel-freezer |
|
- | |||||
| 9 | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 | |||||
| 10 | 5303001324 | Tray-ice, Plastic |
|
- | |||||
| 11 | 3916129 | Shelf-freezer |
|
- | |||||
| 12 | 5308014667 | Deflector, Air |
|
- | |||||
| 12 | 5303200590 | Extension, Air Deflector, With Insulation (non-illustrated) |
|
- | |||||
| 12 | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17 | 5303272507 | Box-control |
|
- | |||||
| 17 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 18 | 5303209251 | Knob-temp Control |
|
- | |||||
| 19 | 5303272508 | Switch-energy Saver |
|
- | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Contrl Cap Tube |
|
- | |||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303209232 | Shelf-cantilever, Refr, (3) |
|
- | |||||
| 24 | 5300170910 | Clip-cantilever Shlf (non-illustrated) |
|
$ 2.60 | |||||
| 25 | 3205098 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303275274 | Pan-crisper, Lh |
|
- | |||||
| 26 | 5303274981 | Pan-crisper, Rh |
|
- | |||||
| 27 | 5303206508 | Support-crisper Cvr, Adjustable |
|
- | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 29 | 5303274957 | Trim-refr Shelf, (3) |
|
- | |||||
| 30 | 5303206773 | Cover-meat Pan |
|
- | |||||
| 31 | 5303275012 | Pan-meat |
|
- | |||||
| 35 | 5303274987 | Trim-crisper Pan, Lh |
|
- | |||||
| 35 | 5303274986 | Trim-crisper Pan, Rh |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 |
