02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

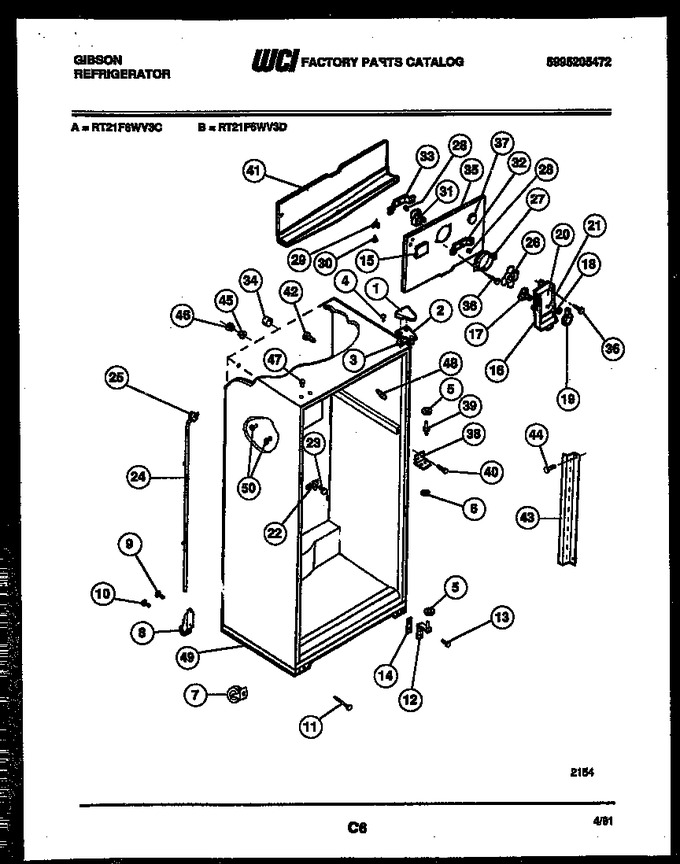

1	5303001666		Hinge Cover, Coffee		Appelez-nous	-
1	5308012820		Hinge Cover, White		Appelez-nous	-
1	5308012933		Hinge Cover, Almond		Appelez-nous	-
1	5303001664		Hinge Cover, Avoc		Appelez-nous	-
1	5303001665		Hinge Cover, Wheat		Appelez-nous	-
2	5308012843		Hinge-bracket Upper				$ 71.47
3	5303001037		Shim-bracket-upper				$ 12.39
4	241710601		Screw   (Replaces: 5303001479)				$ 13.46
5	5308000007		Washer, Nylon (2)		Appelez-nous	-
6	5308000186		Washer-nylon (2)			Immediately	$ 6.02
7	5303212490		Roller Assy, Front, (2)		Appelez-nous	-
8	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
9	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
10	5308009762		Bolt-1/4-28 X 1/2 (2)		Appelez-nous	-
11	5303271412		Bolt-roller Adj 1/4-20 (2)				$ 37.64
12	5303212489		Hinge Bracket-lower		Appelez-nous	-
13	5303001320		Screw-hinge/gusset (6)		Appelez-nous	-
14	5303212488		Shim-bracket-lower				$ 5.25
15	5308013636		Plug, Decorative		Appelez-nous	-
16	5303201444		Cover-fan		Appelez-nous	-
17	5303001331		Damper				$ 31.71
18	5303001028		Push-nut		Appelez-nous	-
19	5308011763		Knob-damper		Appelez-nous	-
20	G185863		Label - Upper		Appelez-nous	-
21	G185864		Label - Lower		Appelez-nous	-
22	5308000056		Spout Drain				$ 11.66
23	5303001361		Pin, Push, (2)		Appelez-nous	-
24	5303210377		Drain Tube W/ Ring Seal				$ 109.31
25	5303207353		Ring - Seal				$ 6.81
26	5308000010		Fan			Immediately	$ 49.03
27	5308000124		Ring, Orifice				$ 53.58
28	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
29	5308000107		Bracket-connector				$ 33.23
30	5303210353		Screw-connector		Appelez-nous	-
31	5300158289		Motor, Fan			Immediately	$ 149.94
32	5303205118		Bracket - Front		Appelez-nous	-
33	5303205119		Bracket, Rear		Appelez-nous	-
34	5303001198		Tube, Rubber (2)		Appelez-nous	-
35	5308013665		Cover, Coil		Appelez-nous	-
36	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
37	5303208309		Plug, Short Test Hole				$ 45.50
38	5303001369		Hinge-bracket Center		Appelez-nous	-
39	5308000184		Pin-bracket Center				$ 8.87
40	5308012258		Screw				$ 2.25
41	5303001470		Trough-drain		Appelez-nous	-
42	5308000097		Support, Coil Cover (2)		Appelez-nous	-
43	5308000302		Channel (2)		Appelez-nous	-
44	5308010253		Screw-8-15 X 7/8 (6)		Appelez-nous	-
45	5303001286		Ferrule-inner		Appelez-nous	-
46	5303001287		Ferrule-outer		Appelez-nous	-
47	5303001388		Plug-button, White				$ 2.60
47	5303001677		Plug-button-avoc		Appelez-nous	-
47	5303001678		Plug-button-wheat		Appelez-nous	-
47	5303001679		Plug-button-coffee		Appelez-nous	-
47	5303001389		Plug-button, Almond		Appelez-nous	-
48	5303202340		Trim-corner-almond		Appelez-nous	-
48	5303202338		Trim-corner-wheat		Appelez-nous	-
48	5303202337		Trim-corner-avoc		Appelez-nous	-
48	5303202336		Trim-corner (white)		Appelez-nous	-
48	5303202339		Trim-corner-coffee		Appelez-nous	-
49	5303212487		Base-cabinet		Appelez-nous	-
50	5304500407		Grommet Shelf (4)   (Replaces: 5308009759)			Immediately	$ 6.38
50	5304509705		Grommet Shelf (4)   (Replaces: 5303001609)				$ 10.01
*43637	5308016571		Plug-freezer Liner (5)				$ 4.79
*43637	5308012296		Tapping-plate (2)				$ 47.44
13A	5303212597		Gusset-tapping Plate Rh (non-illustrated)		Appelez-nous	-
13B	5303212596		Gusset-tapping Plate (lh) (non-illustrated)		Appelez-nous	-
35A	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
