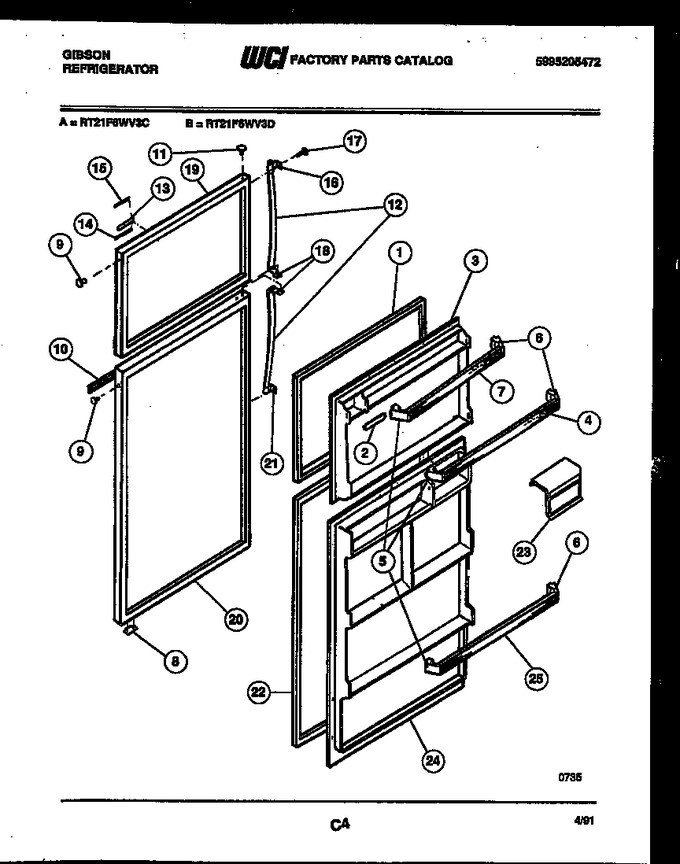

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308016617		Gasket-freezer		Appelez-nous	-
2	3202032		Dispenser-juice Can		Appelez-nous	-
3	3203566		Inner Panel-freezer		Appelez-nous	-
4	5303270439		Rack-door		Appelez-nous	-
5	5317828402		Support-ls (4)		Appelez-nous	-
6	5317828702		Support-rs (4)		Appelez-nous	-
7	G161019-66		Rack-door		Appelez-nous	-
8	5303212491		Stop-door-refrig		Appelez-nous	-
9	5308000178		Plug, Handle, Coffee		Appelez-nous	-
9	5308000179		Plug-handle-avocado		Appelez-nous	-
9	5308000181		Plug, Handle, Almond		Appelez-nous	-
9	5308000180		Plug, Handle, Wheat		Appelez-nous	-
9	240494001		Plug, Handle, White   (Replaces: 5308000090)			Immediately	$ 18.20
10	5303270464		Trim-frzr & Refr Door		Appelez-nous	-
11	5308000134		Plug, Hinge, White				$ 5.62
11	5303001308		Plug, Hinge, Almond		Appelez-nous	-
11	5303001657		Plug-hinge, Coffee		Appelez-nous	-
11	5308000176		Plug, Hinge, Wheat		Appelez-nous	-
11	5308000175		Plug-hinge-avocado		Appelez-nous	-
12	5317049526		Grip - Handle (2)		Appelez-nous	-
13	5317511702		Nameplate - Frame		Appelez-nous	-
14	3019041		Label-lower		Appelez-nous	-
15	5318837802		Label Upper		Appelez-nous	-
16	5303001297		Handle End Top				$ 70.22
17	5308011745		Screw				$ 10.38
18	5303001296		Handle End, (2)				$ 86.36
19	G188158-09		Freezer Door-wheat		Appelez-nous	-
19	G188158-10		Freezer Door-coffee		Appelez-nous	-
19	G188158-11		Freezer Door-almond		Appelez-nous	-
19	5318815808		Freezer Door-avocado		Appelez-nous	-
19	5300188158		Freezer Door-white		Appelez-nous	-
20	5300178694		Refrigerator Door - White		Appelez-nous	-
20	5317869411		Refrigerator Door-almd		Appelez-nous	-
20	5317869410		Refrigerator Door - Coffee		Appelez-nous	-
20	5317869408		Refrigerator Door-avoc		Appelez-nous	-
20	5317869409		Refrigerator Door - Wheat		Appelez-nous	-
21	5303001295		Handle - End Bottom		Appelez-nous	-
22	5308015544		Gasket-refrigerator		Appelez-nous	-
23	5303270562		Dairy Door		Appelez-nous	-
24	G187564-02		Inner Panel-refr		Appelez-nous	-
25	5303270439		Rack (2)		Appelez-nous	-
*43630	5303007739		Insulation, Bulk		Appelez-nous	-
13A	5315340760		Tape - Frame Mtg (non-illustrated)		Appelez-nous	-
19A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
20A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
24A	5308002748		Screw		Appelez-nous	-
3A	5308002748		Screw		Appelez-nous	-
8A	5308000255		Stop-door-freezer				$ 42.20

    View Diagram in Separate Window       Print Part List
