SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


07 - System And Automatic Defrost Parts

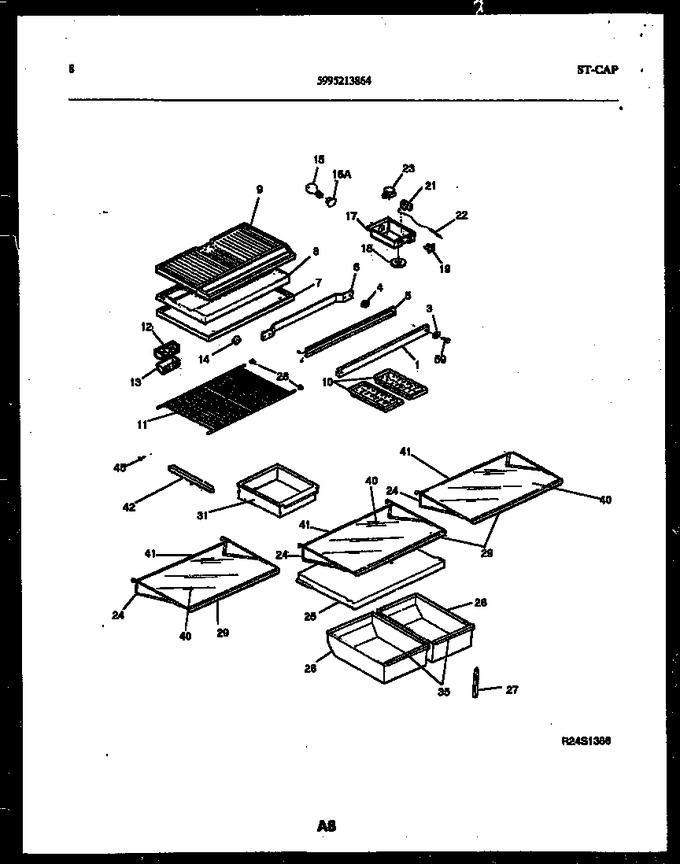

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200366		Mullion, White				$ 70.04
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer, Mullion Mtg, (2)		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
7	3019038		Top Panel-refr		Appelez-nous	-
8	5303019039		Divider, Styrofoam		Appelez-nous	-
8	3019040		Wiring Harness, Control/divider (non-illustrated)		Appelez-nous	-
9	3205266		Protector-edge (non-illustrated)				$ 80.09
9	5303210641		Bottom Panel-freezer		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
11	3916129		Shelf-freezer		Appelez-nous	-
12	5308014667		Deflector, Air		Appelez-nous	-
12	5303200590		Extension, Air Deflector, With Insulation (non-illustrated)		Appelez-nous	-
12	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch, Light			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
17	5303272507		Box-control		Appelez-nous	-
17	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
18	5303209251		Knob-temp Control		Appelez-nous	-
19	5303207249		Switch-energy Saver		Appelez-nous	-
21	5303018894		Control-temperature		Appelez-nous	-
21	5303001260		Screw				$ 6.73
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24	5303211349		Frame-meat Kpr Shelf, Cantilever		Appelez-nous	-
24	5300170910		Clip-cantilever Shlf (non-illustrated)				$ 2.60
24	5303209276		Frame, Full Shelf, Cantilever		Appelez-nous	-
25	3205098		Cover-crisper Pan		Appelez-nous	-
26	5303275274		Pan-crisper, Lh		Appelez-nous	-
26	5303274981		Pan-crisper, Rh		Appelez-nous	-
27	5303206508		Support-crisper Cvr, Adjustable		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	5303274957		Trim-refr Shelf		Appelez-nous	-
31	5303275012		Pan-meat		Appelez-nous	-
35	5303274987		Trim-crisper Pan, Lh		Appelez-nous	-
35	5303274986		Trim-crisper Pan, Rh		Appelez-nous	-
40	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
40	5303275064		Shelf-glass		Appelez-nous	-
41	5303211351		Lock-rear Trim (non-illustrated)		Appelez-nous	-
41	5303275061		Trim-full Shelf, Rear		Appelez-nous	-
42	5303210017		Hanger, Meat Pan, Rh (non Illustrated)				$ 107.89
42	5303210016		Hanger, Meat Pan, Lh				$ 134.09
45	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
59	5308012258		Screw				$ 2.25
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72

    View Diagram in Separate Window       Print Part List
