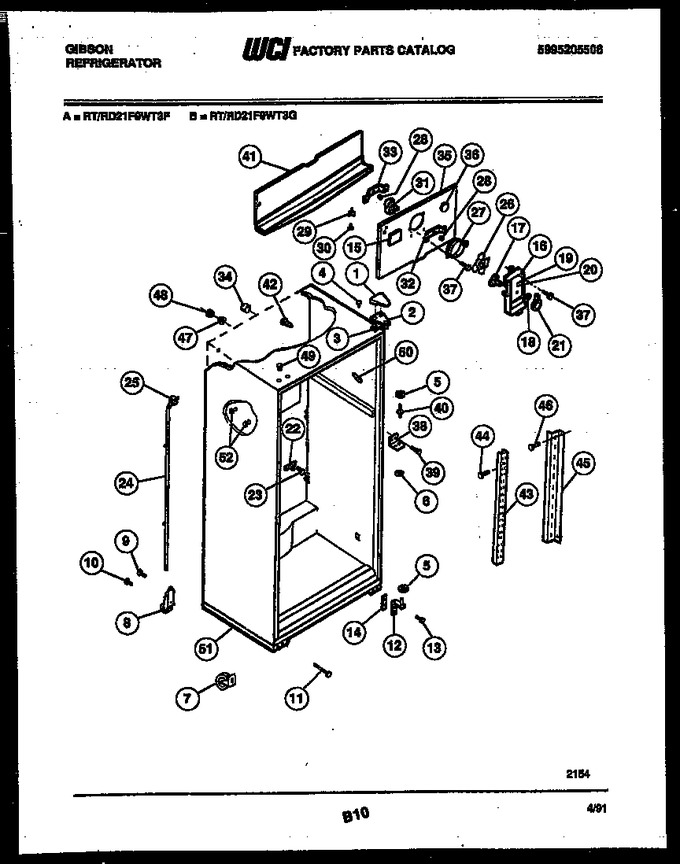

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001665		Cover - Hinge-wheat		Appelez-nous	-
1	5308012820		Cover - Hinge-white		Appelez-nous	-
1	5308012933		Cover-hinge-almond		Appelez-nous	-
1	5303001666		Cover - Hinge-coffee		Appelez-nous	-
1	5303001664		Cover - Hinge-avoc		Appelez-nous	-
2	5308012843		Bracket-hinge Upper				$ 71.47
3	5303001037		Shrim-hinge-upper				$ 12.39
4	241710601		Screw   (Replaces: 5303001479)				$ 13.46
5	5308000007		Washer, Nylon (2)		Appelez-nous	-
6	5308000186		Washer-nylon (2)			Immediately	$ 6.02
7	5303212490		Roller Assy, Front, (2)		Appelez-nous	-
8	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
9	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
10	5308009762		Bolt-1/4-28 X 1/2 (2)		Appelez-nous	-
11	5303271412		Bolt 1/4-28 X 2-3/4 (2)				$ 37.64
12	5303212489		Bracket-hinge Lower		Appelez-nous	-
13	5303001320		Screw-hinge Gusset Mtg (6)		Appelez-nous	-
14	5303212488		Shim-hinge Lower				$ 5.25
15	5308013636		Plug, Decorative		Appelez-nous	-
16	5303201444		Cover-fan		Appelez-nous	-
17	5303001331		Damper				$ 31.71
18	5303001028		Nut, Push		Appelez-nous	-
19	G185863		Label - Upper		Appelez-nous	-
20	G185864		Label - Lower		Appelez-nous	-
21	5308011763		Knob-damper		Appelez-nous	-
22	5308000056		Spout Drain				$ 11.66
23	5303001361		Pin, Push, (2)		Appelez-nous	-
24	5303210377		Tube-drain W/ring Seal				$ 109.31
25	5303207353		Ring - Seal				$ 6.81
26	5308000010		Fan			Immediately	$ 49.03
27	5308000124		Ring, Orifice				$ 53.58
28	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
29	5308000107		Bracket-connector				$ 33.23
30	5303210353		Screw-bracket Connector		Appelez-nous	-
31	5300158289		Motor, Fan			Immediately	$ 149.94
32	5303205118		Bracket - Front		Appelez-nous	-
33	5303205119		Bracket, Rear		Appelez-nous	-
34	5303001198		Tube, Rubber (2)		Appelez-nous	-
35	5308013665		Cover, Coil		Appelez-nous	-
36	5303208309		Plug, Short Test Hole				$ 45.50
37	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
38	5303001369		Bracket-hinge-center		Appelez-nous	-
39	5308012258		Screw				$ 2.25
40	5308000184		Pin-hinge Center				$ 8.87
41	5303001470		Trough-drain		Appelez-nous	-
42	5308000097		Support, Cover (2)		Appelez-nous	-
43	5303015409		Channel Center		Appelez-nous	-
44	5308016568		Screw-channel Center (3)		Appelez-nous	-
45	5308000302		Channel-shelf (2)		Appelez-nous	-
46	5308010253		Screw-channel (6)		Appelez-nous	-
47	5303001286		Ferrule-inner		Appelez-nous	-
48	5303001287		Ferrule-outer		Appelez-nous	-
49	5303001678		Button-plug-wheat		Appelez-nous	-
49	5303001679		Button-plug-coffee		Appelez-nous	-
49	5303001389		Button-plug-almond		Appelez-nous	-
49	5303001677		Button-plug-avoc		Appelez-nous	-
49	5303001388		Button Plug-white				$ 2.60
50	5303202339		Corner Trim - Coffee		Appelez-nous	-
50	5303202337		Corner Trim, Avoc		Appelez-nous	-
50	5303202336		Corner-trim (white)		Appelez-nous	-
50	5303202338		Corner Trim, Wheat		Appelez-nous	-
50	5303202340		Corner Trim-almond		Appelez-nous	-
51	5303212487		Base-cabinet		Appelez-nous	-
52	5304509705		Grommet Shelf (4)   (Replaces: 5303001609)				$ 10.01
*43545	5308016571		Button-plug Liner (6)				$ 4.79
*43545	5304500407		Grommet Shelf (4)   (Replaces: 5308009759)			Immediately	$ 6.38
*43545	5308012296		Tapping-plate (2)				$ 47.44
12A	5303212597		Gusset-tapping Plate Rh (non-illustrated)		Appelez-nous	-
12B	5303212596		Gusset-tapping Plate (lh) (non-illustrated)		Appelez-nous	-
35A	5303209814		Nut-``u`` Type (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
