View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

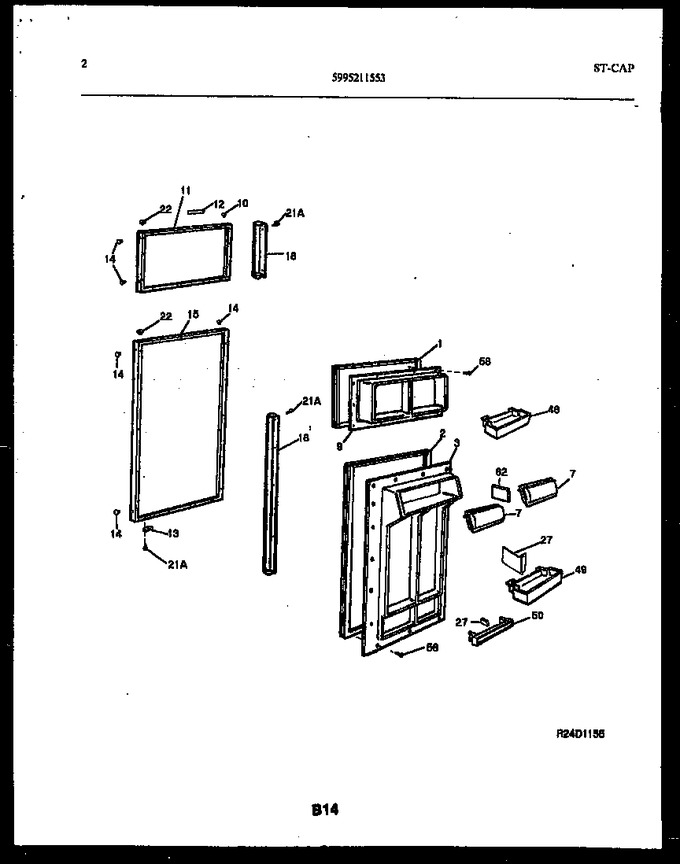

02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016617 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5308015544 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5308017047 | Nut, Self Threading, 1/8 (non-illustrated) |
|
- | |||||
| 3 | 5303279802 | Panel, Inner Door, Refr |
|
- | |||||
| 7 | 5303279800 | Door-dairy, (2) |
|
- | |||||
| 9 | 5303279871 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916115 | Panel, Frzr Door, White |
|
- | |||||
| 12 | 5303272505 | Nameplate Assy |
|
- | |||||
| 13 | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916952 | Panel, Refr Door, White |
|
- | |||||
| 15 | 5303275660 | Brace, Cross (non Illustrated) |
|
- | |||||
| 18 | 5303275178 | Handle-door, Frzr |
|
- | |||||
| 18 | 5303279909 | Handle-door, Refr |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 27 | 5303279908 | Snugger-door Rack |
|
- | |||||
| 27 | 5303279907 | Snugger, Door Rack |
|
- | |||||
| 48 | 5303279795 | Bin-door, 2 Liter, (2) |
|
- | |||||
| 49 | 5303279793 | Bin-door, Gallon, (2) |
|
- | |||||
| 50 | 5303279797 | Bin-door, Small, (2) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 62 | 5303279801 | Divider, Dairy |
|
- | |||||
| *37898 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
