01 - Backguard Assy


02 - Lower Broiler Component


03 - Oven Components


04 - Oven Door-black Glass


05 - Page 3


06 - Sealed Burner Components


07 - Top And Burner Assy

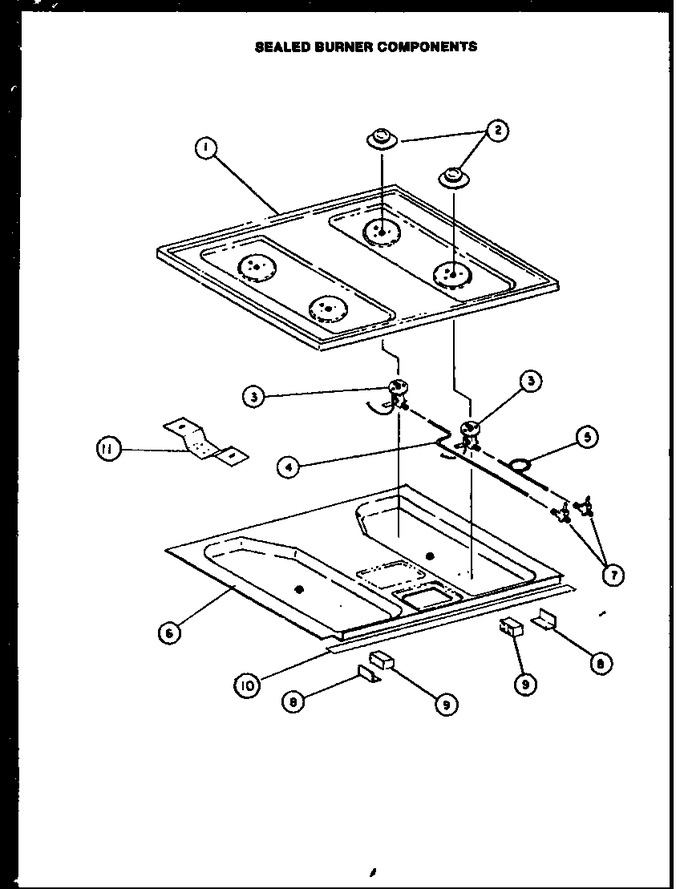

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Main Top		Appelez-nous	-
2	WPY0307210		Assy, Burner Cap Gas   (Replaces: 301349B)				$ 24.24
3	Y0301350		Venturi Assy		Appelez-nous	-
4	Y0312020		Sub 90759, Tubing, 1/4``		Appelez-nous	-
5	Y0312019		Sub 90759, Tubing, 1/4``		Appelez-nous	-
6	0312007		Bottom, Burner Box		Appelez-nous	-
7	Y0312004		Valve, Top Burner, 180 Degrees		Appelez-nous	-
8	Y0087725		Plate, Spark Module		Appelez-nous	-
9	Y0311627		Spark Module		Appelez-nous	-
10	Y0312005		Extension, Burner Box		Appelez-nous	-
11	Y0312008		Support, Top Burner Ext.		Appelez-nous	-
NI	Y0301354		Electrode, Wire And Socket		Appelez-nous	-
NI	0302406		Nut Loxit		Appelez-nous	-
NI	Y0302064		Sub 302619, Orifice Spud		Appelez-nous	-
NI	Y0302405		Orifice, Natural		Appelez-nous	-
