02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

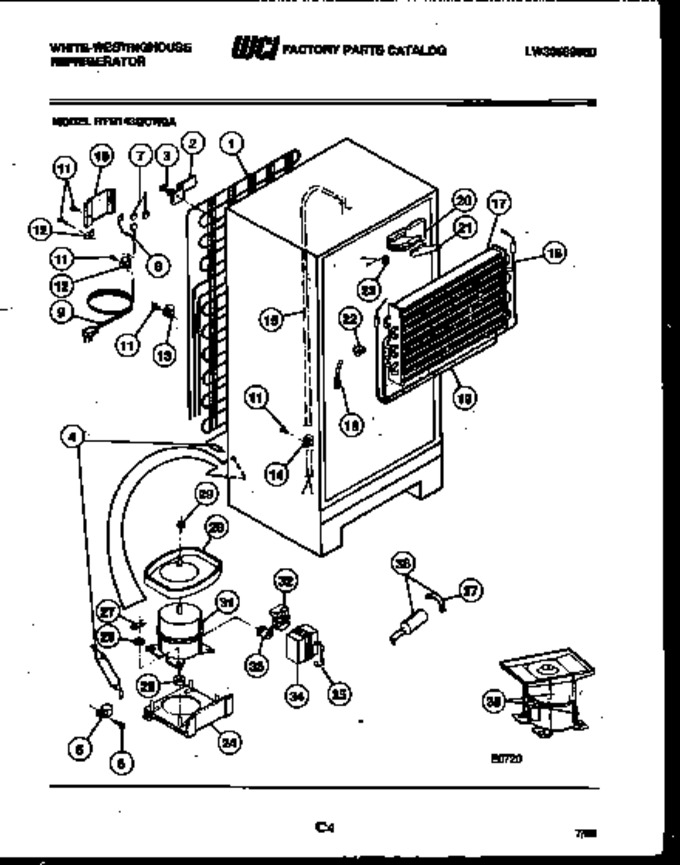

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G178225		Condenser		Appelez-nous	-
2	G164637		Bracket-condenser Mounting (4)		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	3007351		Drier-filter		Appelez-nous	-
5	3201679		Clamp-drier		Appelez-nous	-
6	G144049		Screw		Appelez-nous	-
7	G174818		Wiring Harness-control		Appelez-nous	-
8	G166062-01		Wiring, Harness, Compressor		Appelez-nous	-
9	G162549-01		Service Cord		Appelez-nous	-
10	G183584		Cover, Wiring		Appelez-nous	-
11	G187009		Screw-8-15 X 1/2		Appelez-nous	-
12	G27669		Clamp-cable (3)		Appelez-nous	-
13	G168978		Clamp-harness (2)		Appelez-nous	-
14	G88088		Clamp-exchanger		Appelez-nous	-
15	3201079		Heat Exchanger		Appelez-nous	-
16	G162432-02		Heater-defrost		Appelez-nous	-
17	3201078		Evaporator Coil		Appelez-nous	-
18	G165546		Strap-heater/evaporator (2)		Appelez-nous	-
19	G169024-02		Insulator-evaporator		Appelez-nous	-
20	G185299		Insulation Block Rs		Appelez-nous	-
21	G185276		Insulation Plug Rs		Appelez-nous	-
22	G188375		Insulation Block Ls		Appelez-nous	-
23	G162690-01		Thermostat, Defrost		Appelez-nous	-
24	G162822		Plate-compressor Mtg		Appelez-nous	-
25	G177617		Grommet (4)		Appelez-nous	-
26	G164634		Washer (3)		Appelez-nous	-
27	G163204		Clip (3)		Appelez-nous	-
28	G184715		Pan-defrost Drain		Appelez-nous	-
29	G164958		Lock Nut-pan Mtg		Appelez-nous	-
30	3916001		Pan Retainer Kit-service		Appelez-nous	-
31	3916004		Compressor W/ Electricals		Appelez-nous	-
32	G182225-18		Relay		Appelez-nous	-
33	G188877		Overload		Appelez-nous	-
34	G169333		Cover-terminal		Appelez-nous	-
35	G166057		Strap-cover Mtg		Appelez-nous	-
36	3916391		Capacitor-compressor Run-kit		Appelez-nous	-
37	G188897		Strap-capacitor		Appelez-nous	-
*20772	G189377		Hot Tube Repair Kit-service		Appelez-nous	-
28A	G169873		Sound Tape-pan (non-illustrated)		Appelez-nous	-
3A	G164820		Washer-no. 10 Ext Tooth		Appelez-nous	-
