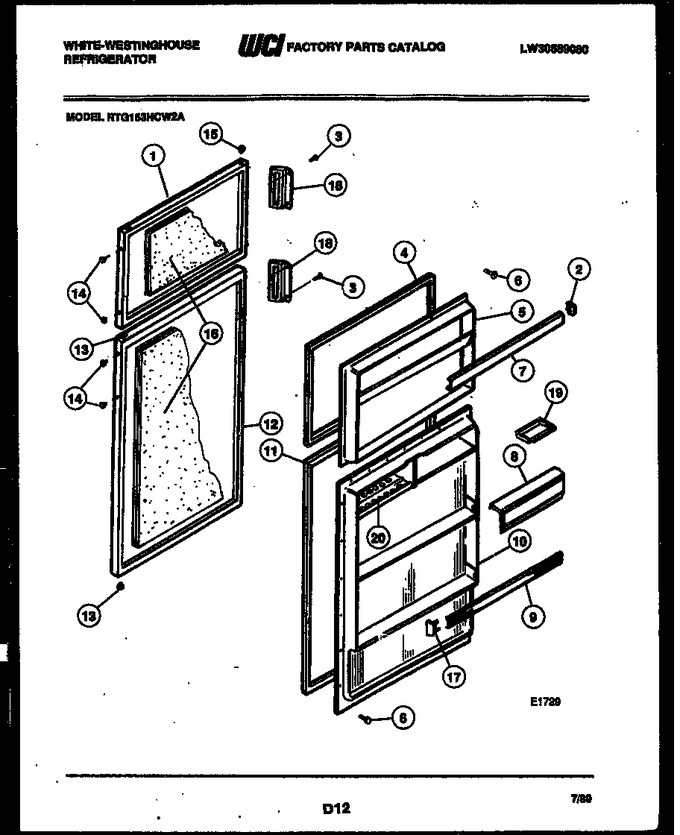

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G187528-10 | Freezer Door-coffee |
|
- | |||||
| 2 | G176891-01 | End Cap-rh (3) |
|
- | |||||
| 3 | G184795 | Screw-handle Mtg (4) |
|
- | |||||
| 4 | G186932-03 | Gasket-freezer |
|
- | |||||
| 5 | G186463-01 | Inner Panel-freezer |
|
- | |||||
| 6 | G162585 | Screw |
|
- | |||||
| 7 | 3201072 | Door Rack-freezer |
|
- | |||||
| 8 | R186414-02 | Dairy Door |
|
- | |||||
| 9 | 3201072 | Door Rack-refr (2) |
|
- | |||||
| 10 | R186469-02 | Inner Panel-refr |
|
- | |||||
| 11 | G186932-02 | Gasket-refrigerator |
|
- | |||||
| 12 | G187529-10 | Refrigerator Door-coffee |
|
- | |||||
| 13 | G183138 | Bearing Hinge (8) |
|
- | |||||
| 14 | G162977-10 | Button Plug-coffee |
|
- | |||||
| 15 | G169332-10 | Button-plug, Coffee |
|
- | |||||
| 16 | G89643 | Insulation (bulk) |
|
- | |||||
| 17 | G176892-01 | End Cap-lh (3) |
|
- | |||||
| 18 | 3016495 | Handle-coffee |
|
- | |||||
| 19 | G161079 | Butter Dish |
|
- | |||||
| 20 | G182885-04 | Tray-egg |
|
- |
