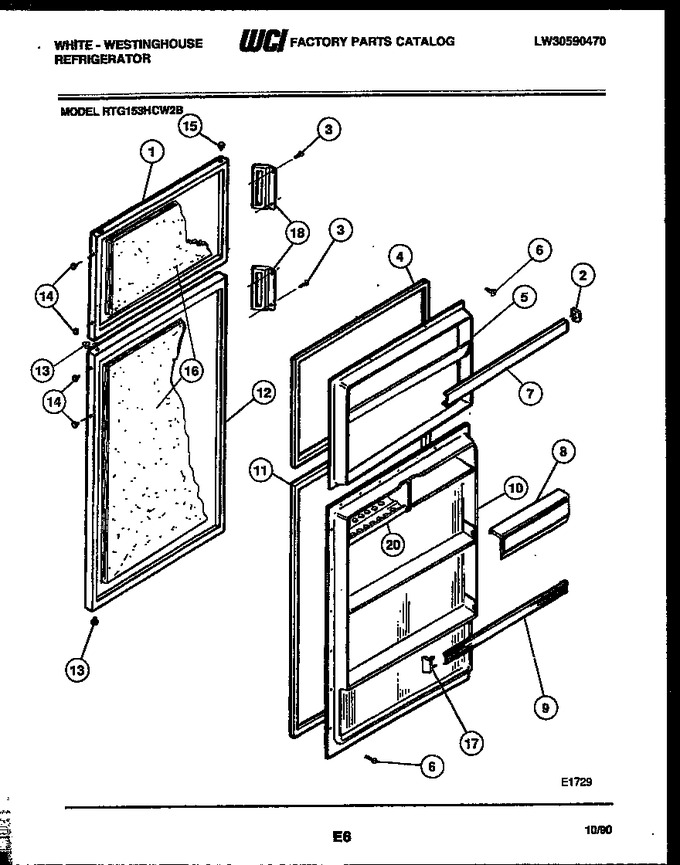

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5318752808 | Freezer Door - Avocado |
|
- | |||||
| 2 | 5317689101 | End Cap - Rh (3) |
|
- | |||||
| 3 | 5308013645 | Screw - Handle Mounting (4) |
|
- | |||||
| 4 | 5303001399 | Gasket-freezer |
|
- | |||||
| 5 | 5318646301 | Inner Panel - Freezer |
|
- | |||||
| 6 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 7 | 3201072 | Door Rack-freezer |
|
- | |||||
| 8 | 5318641402 | Dairy Door |
|
- | |||||
| 9 | 3201072 | Door Rack - Refrigerator (2) |
|
- | |||||
| 10 | 5318646902 | Inner Panel - Refrigerator |
|
- | |||||
| 11 | 5303001398 | Gasket-refrigerator |
|
- | |||||
| 12 | 5318752908 | Refrigerator Door - Avocado |
|
- | |||||
| 13 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 14 | 5308000179 | Plug-avocado (4) |
|
- | |||||
| 15 | 5308000175 | Plug-avocado (2) |
|
- | |||||
| 16 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 17 | 5317689201 | End Cap - Lh (3) |
|
- | |||||
| 18 | 3205586 | Handle-avocado |
|
- | |||||
| 20 | G172885-04 | Tray-egg |
|
- |
