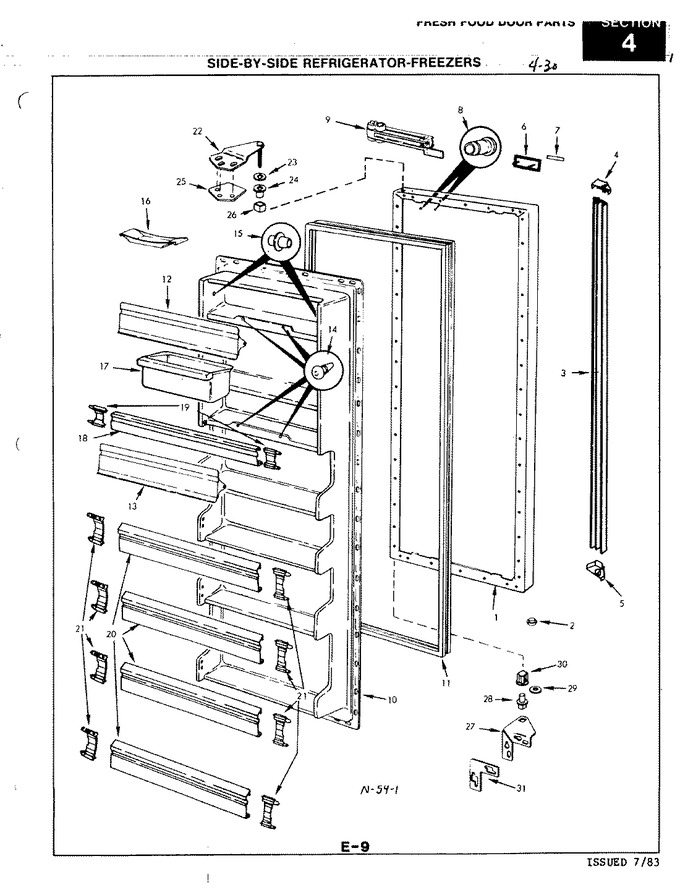

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55587-34-AM		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	56835-31		Handle		Appelez-nous	-
3	420063-1		Washer		Appelez-nous	-
3	402100-1		Screw		Appelez-nous	-
4	57947-1		End Cap		Appelez-nous	-
5	57947-2		End Cap		Appelez-nous	-
5	402077-7		Screw		Appelez-nous	-
6	63565-1		Bezel		Appelez-nous	-
7	63566-3		Insert		Appelez-nous	-
8	23511-4		Mtg Clip		Appelez-nous	-
9	54485-1		Closer, Door		Appelez-nous	-
9	52614-1		Bracket, Closer		Appelez-nous	-
10	59433-49		Inner Panel		Appelez-nous	-
10	9986-12		Screw,door Liner		Appelez-nous	-
11	53712-6		Gasket		Appelez-nous	-
12	59234-33		Butter Door		Appelez-nous	-
13	59234-32		Cheese Door		Appelez-nous	-
14	59615-2		Bumper		Appelez-nous	-
15	59325-1		Pivot		Appelez-nous	-
16	29936-2		Tray, Butter		Appelez-nous	-
17	58368-12		Egg Bucket		Appelez-nous	-
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-66)				$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
20	59258-48		Trim		Appelez-nous	-
21	65246-1		Retainer				$ 5.04
22	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
22	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
23	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
24	55781-2		Bushing		Appelez-nous	-
25	65031-1		Shim, Upper Hinge		Appelez-nous	-
26	55990-1		Seal Sleeve		Appelez-nous	-
27	403062-5		Screw		Appelez-nous	-
27	53671-10		Hinge		Appelez-nous	-
28	53672-1		Pin, Lower Hinge		Appelez-nous	-
29	54233-1		Washer				$ 7.71
30	66034-1		Cup   (Replaces: 55424-1)				$ 19.76
31	100588-1		Manual, Use & Care		Appelez-nous	-
31	53688-3		Spacer		Appelez-nous	-
